Description
xHigh-Speed Charging & Flexible Power Management

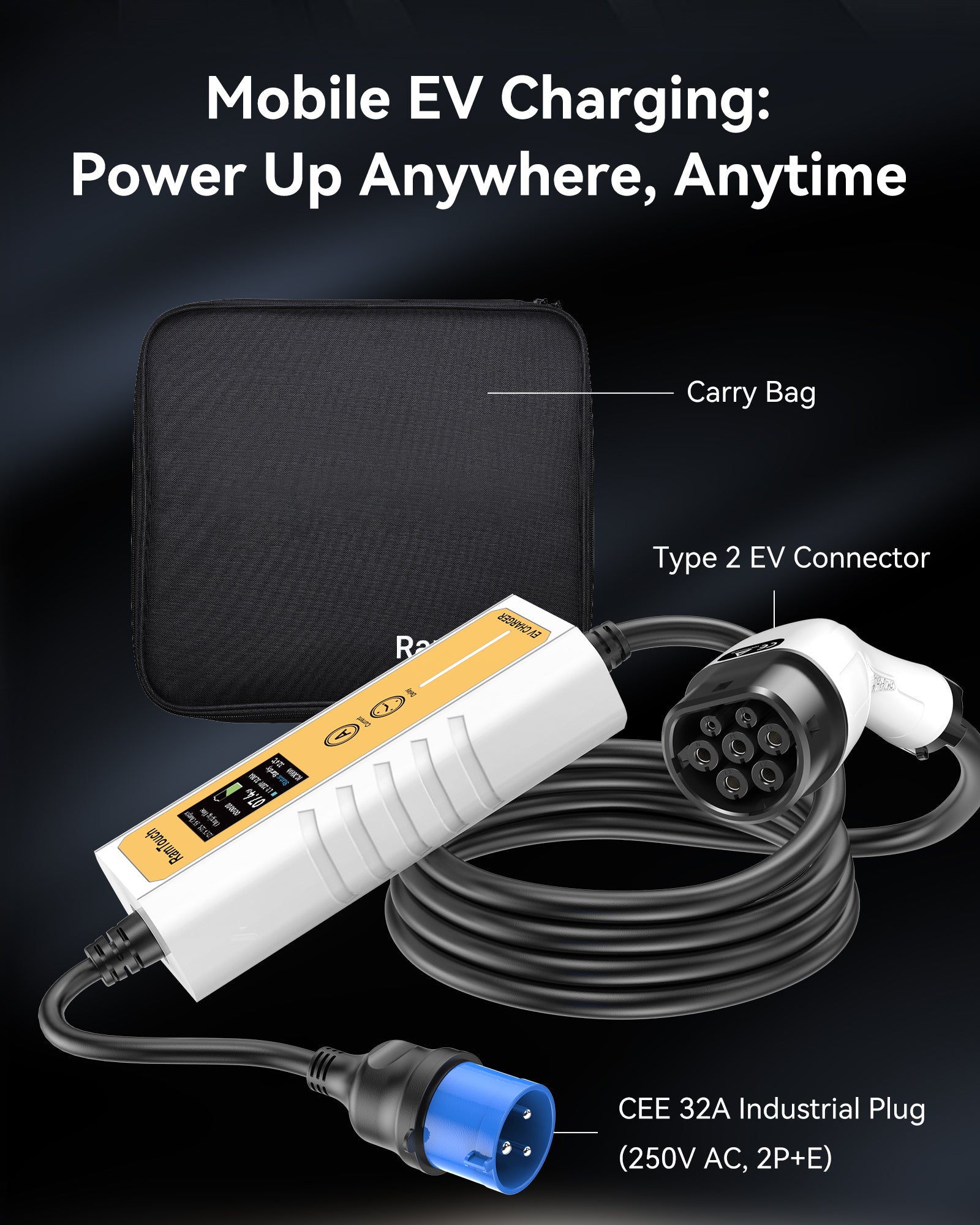

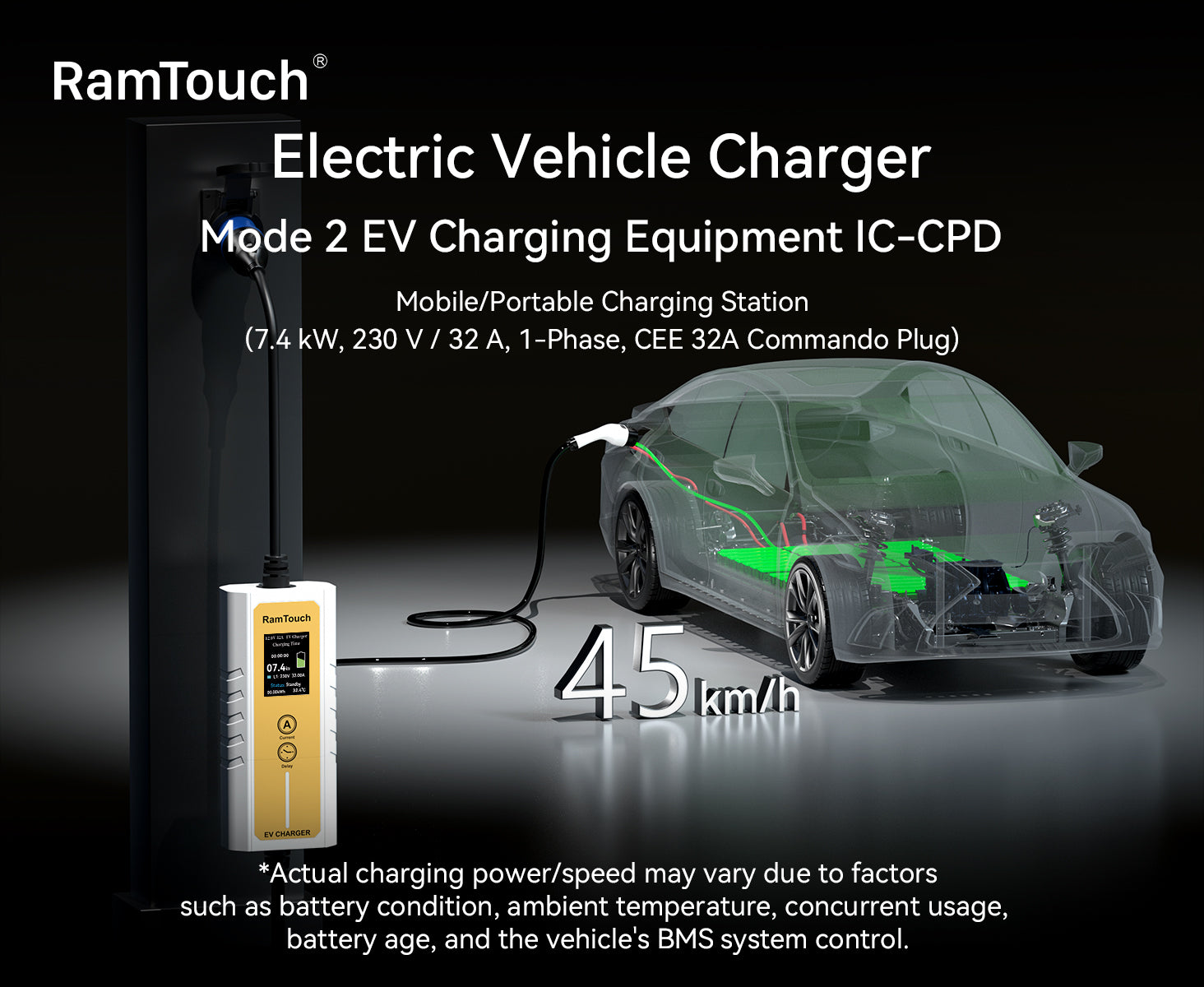

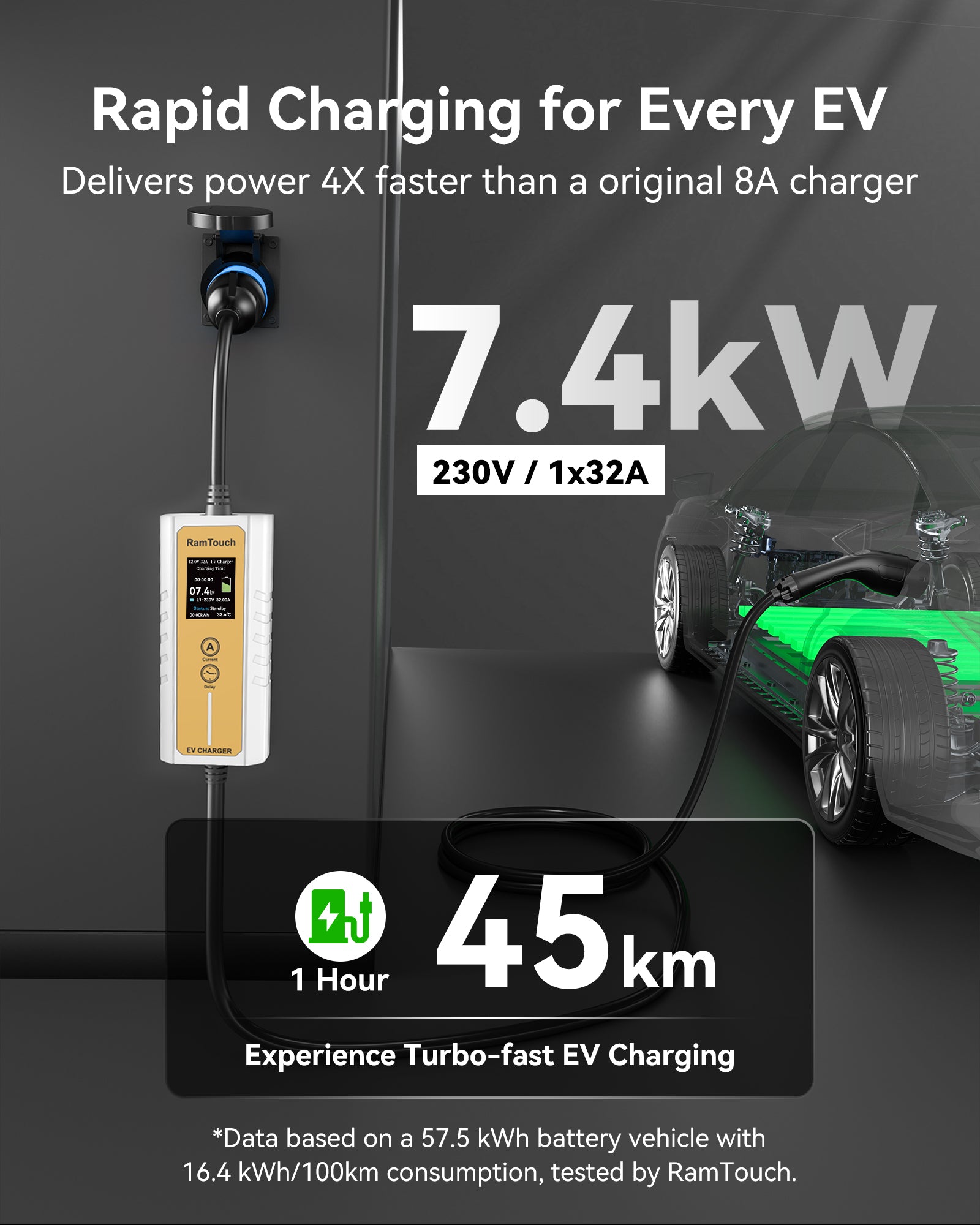

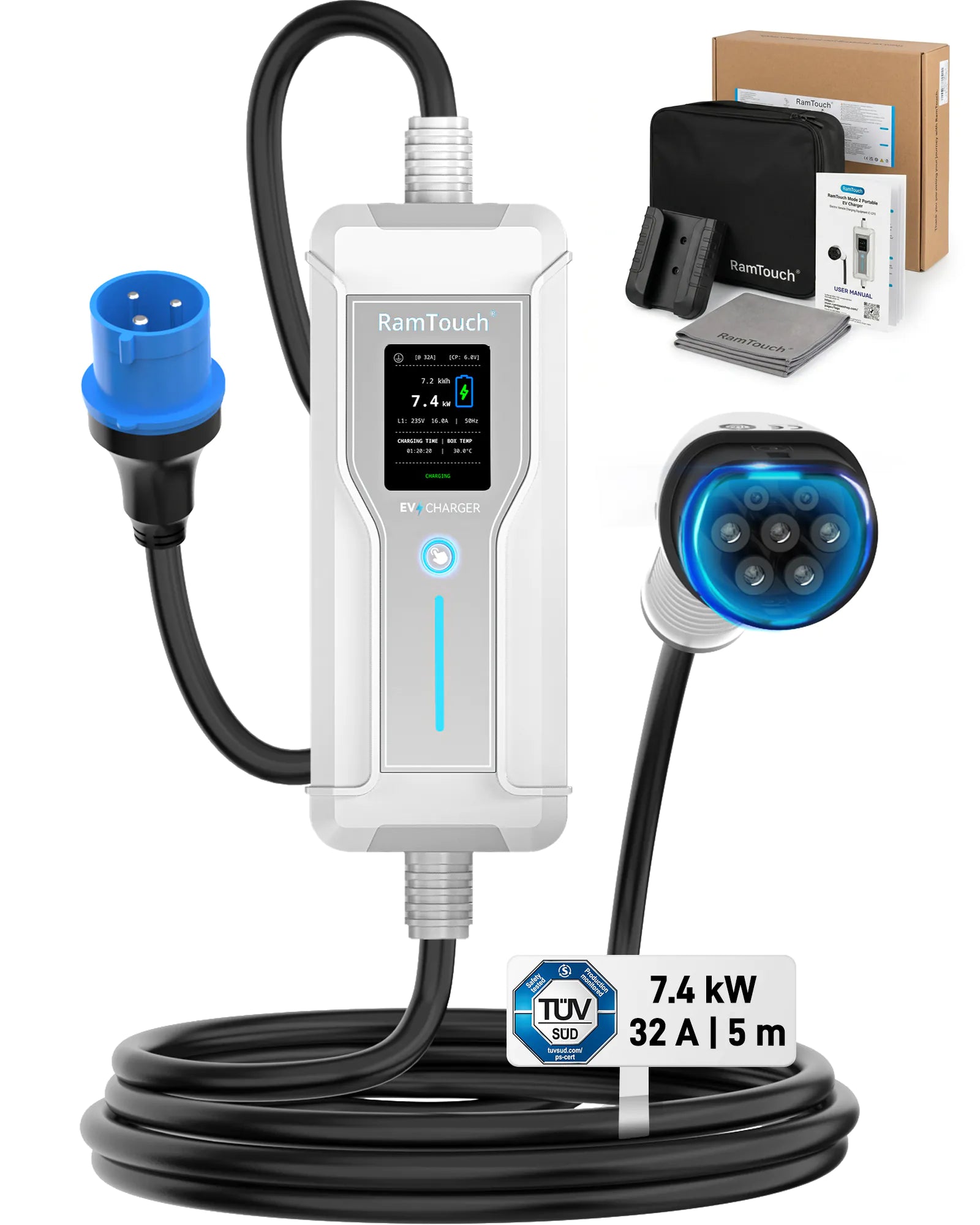

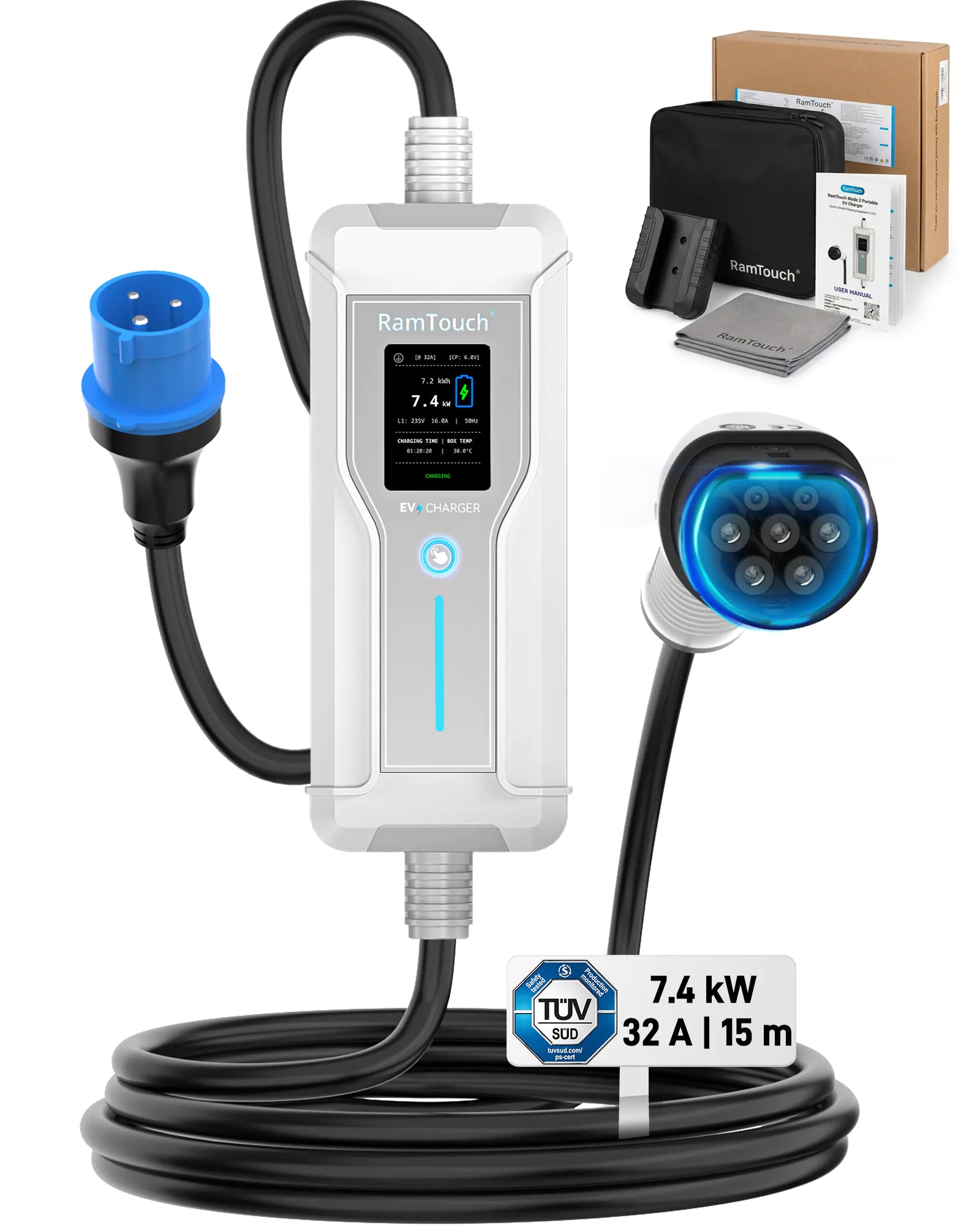

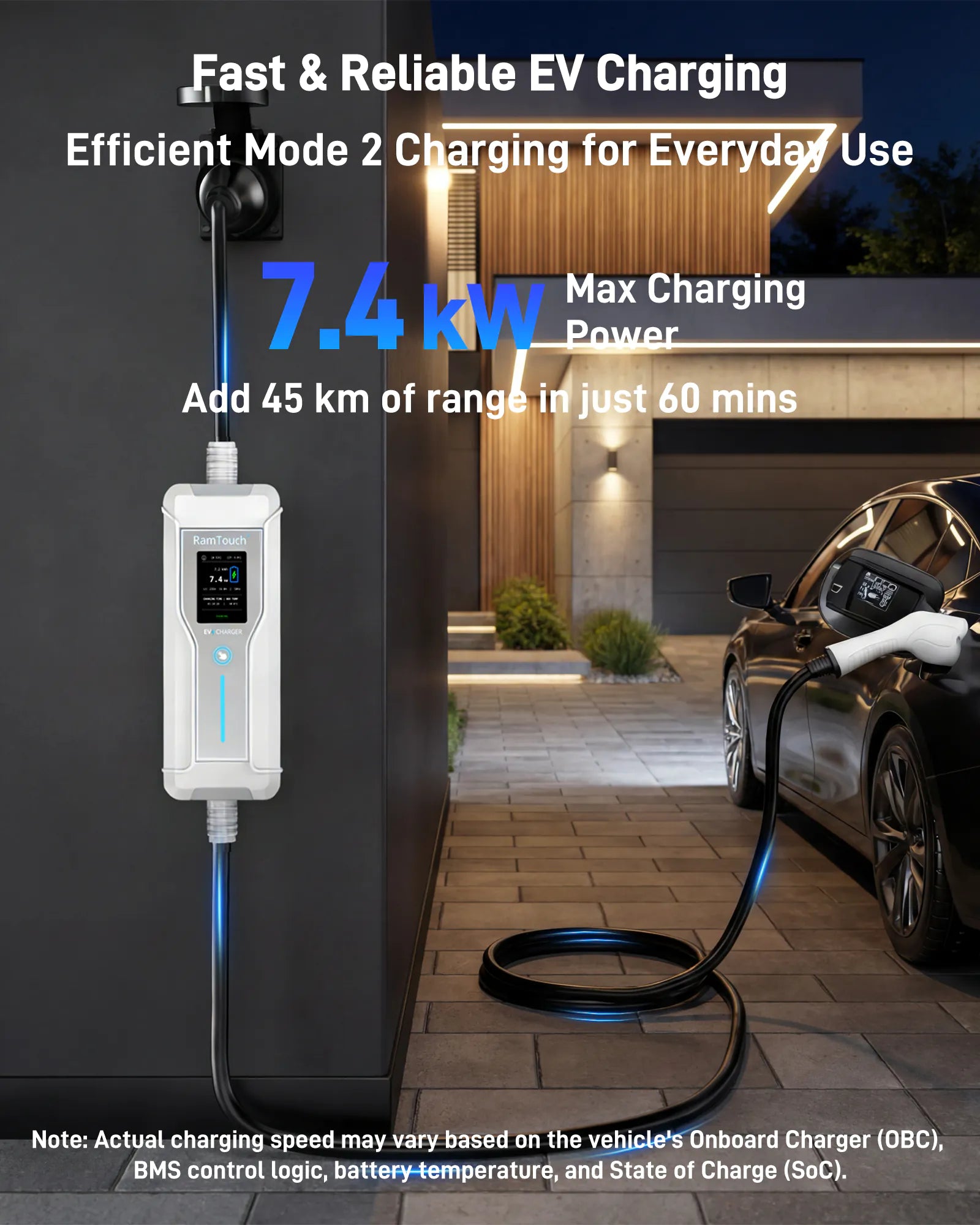

The RamTouch 7.4 kW portable EV charger features a high-performance 32A CEE Commando industrial plug to Type 2 connector. This configuration delivers up to 45 km (28 miles) of range per hour of charging, performing up to 4 times faster than standard 8A chargers. A built-in intelligent power controller offers 9 adjustable current levels from 6A to 32A, ensuring safe and versatile power regulation whether charging at home or on the road. (Note: Actual charging speeds are subject to the vehicle’s onboard charger and Battery Management System.)
Next-Gen Smart Technology

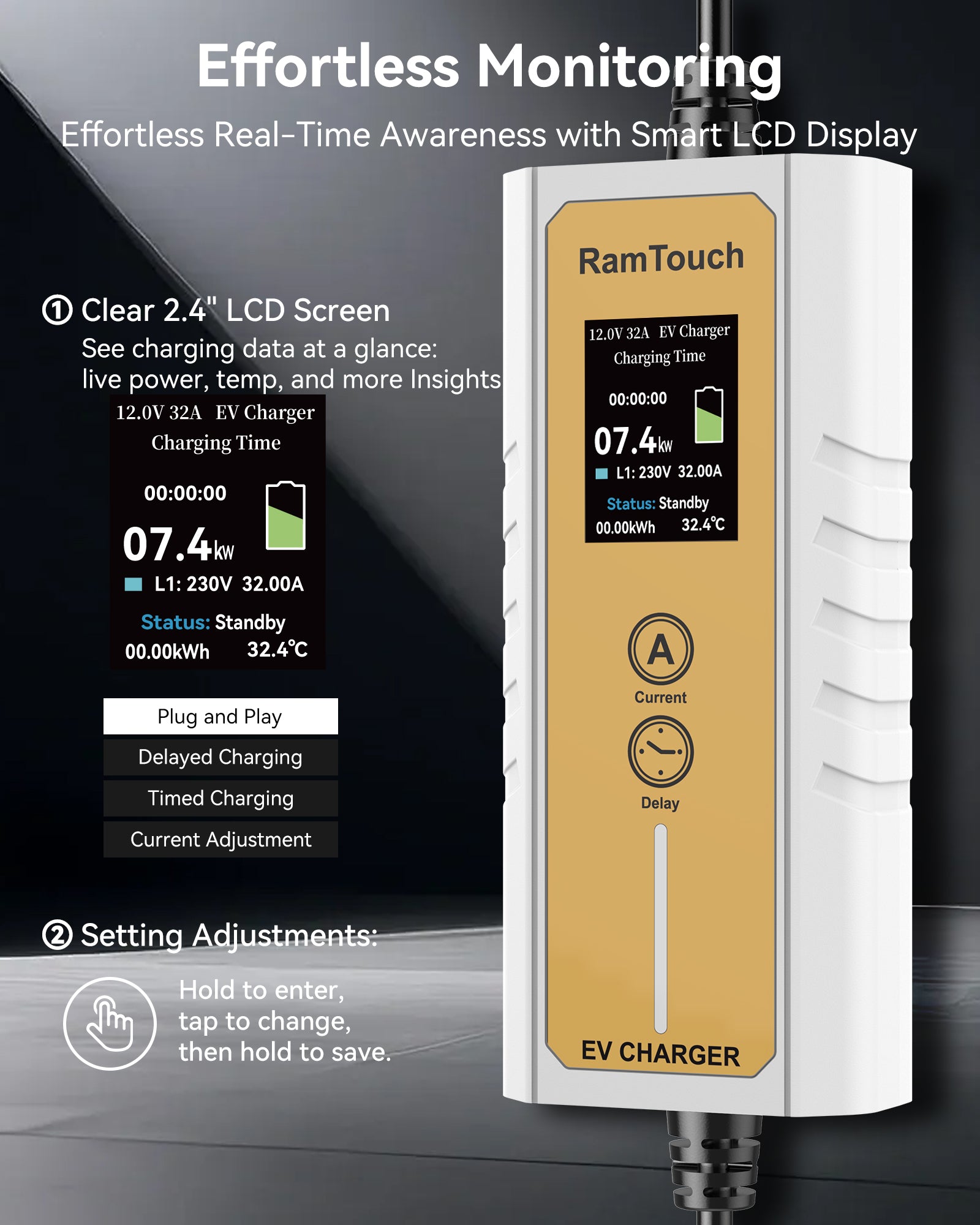

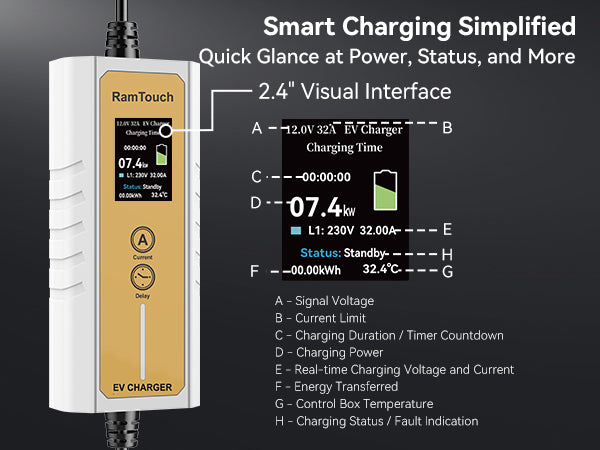

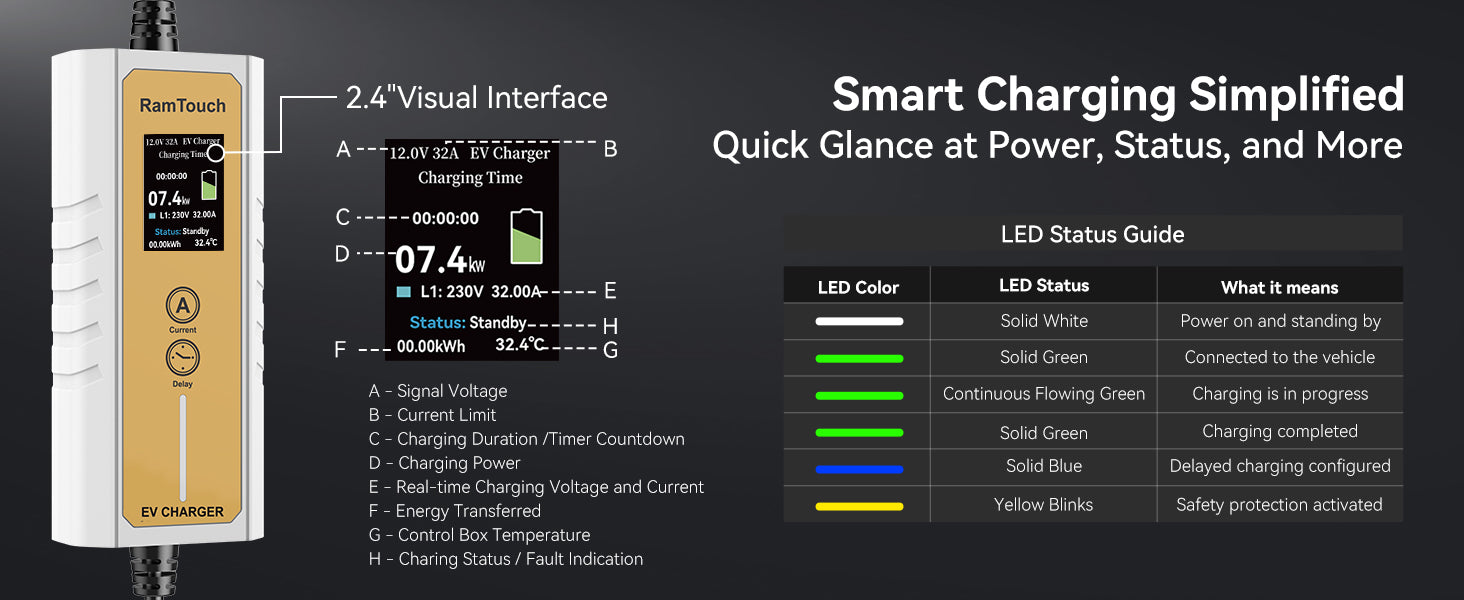

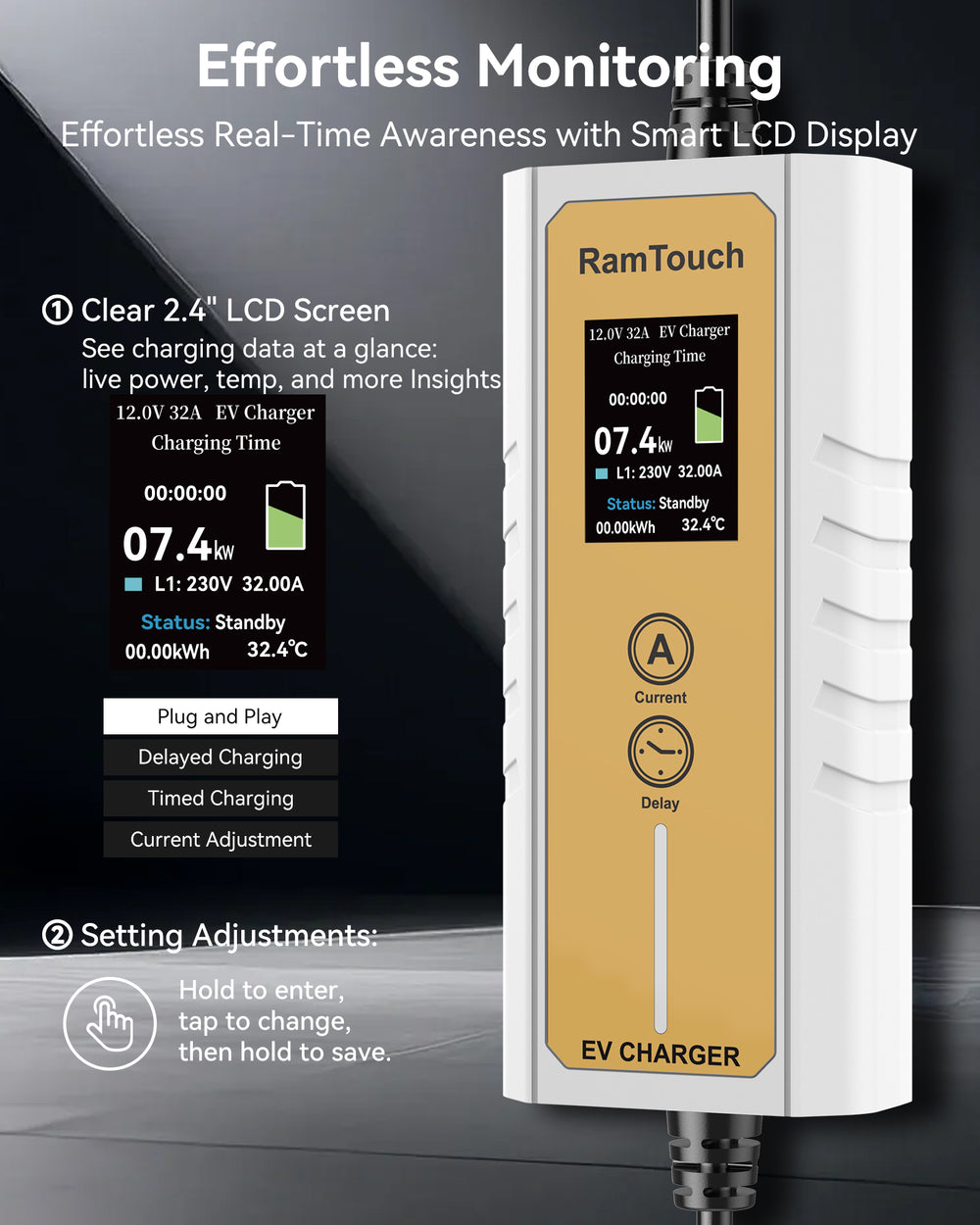

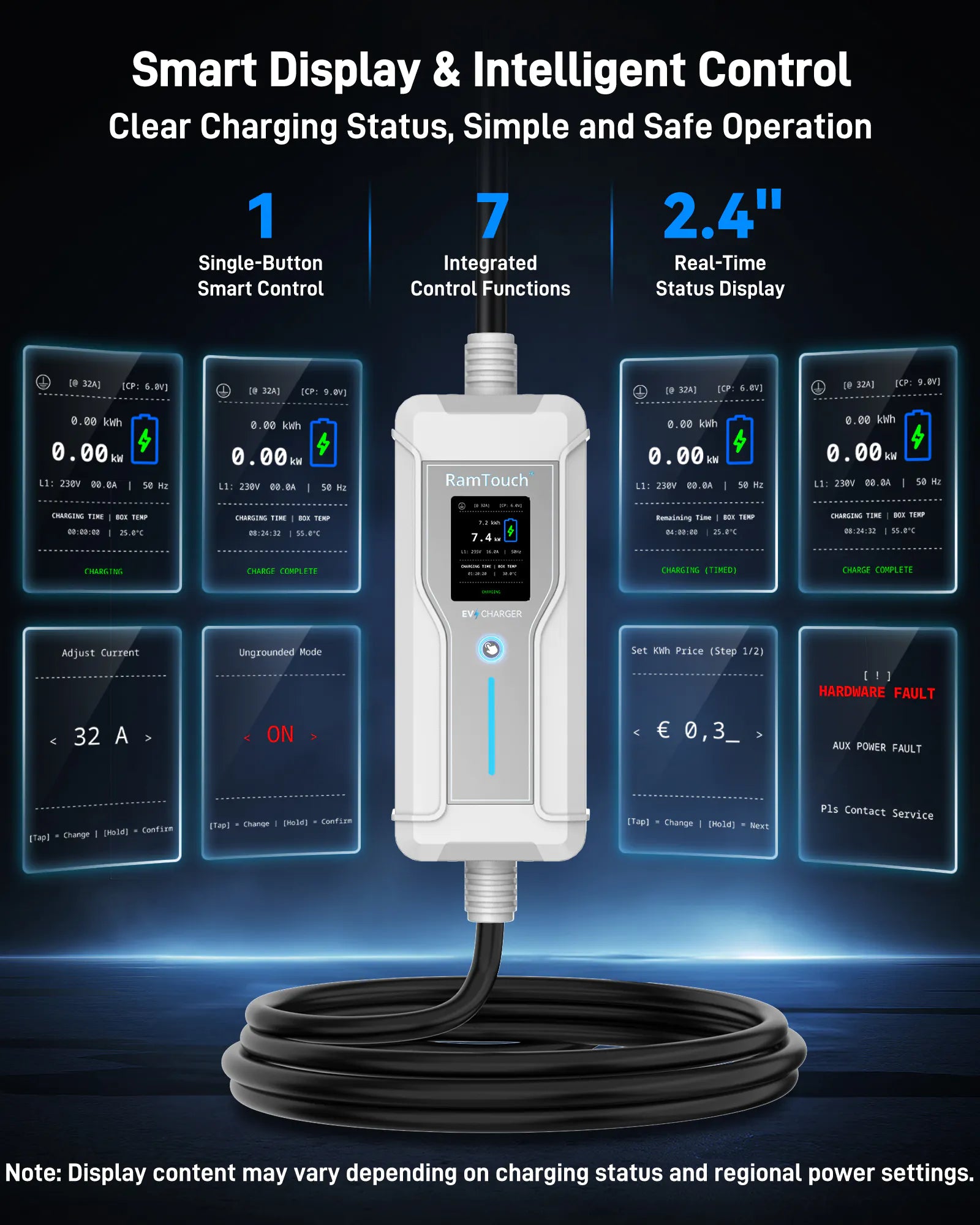

- Intuitive 2.4-Inch LCD Display: Monitor real-time charging status, current, voltage, and energy consumption through a crystal-clear UI.

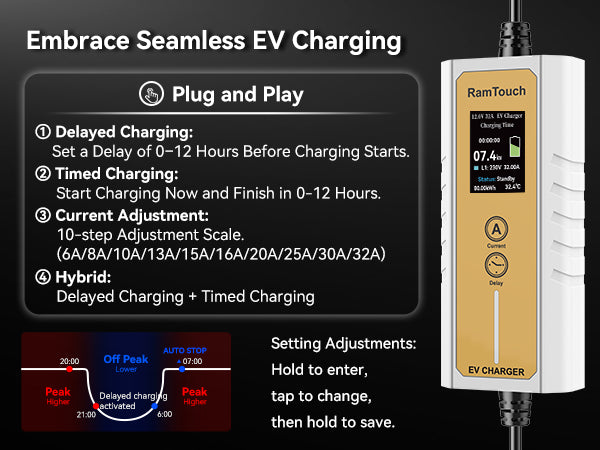

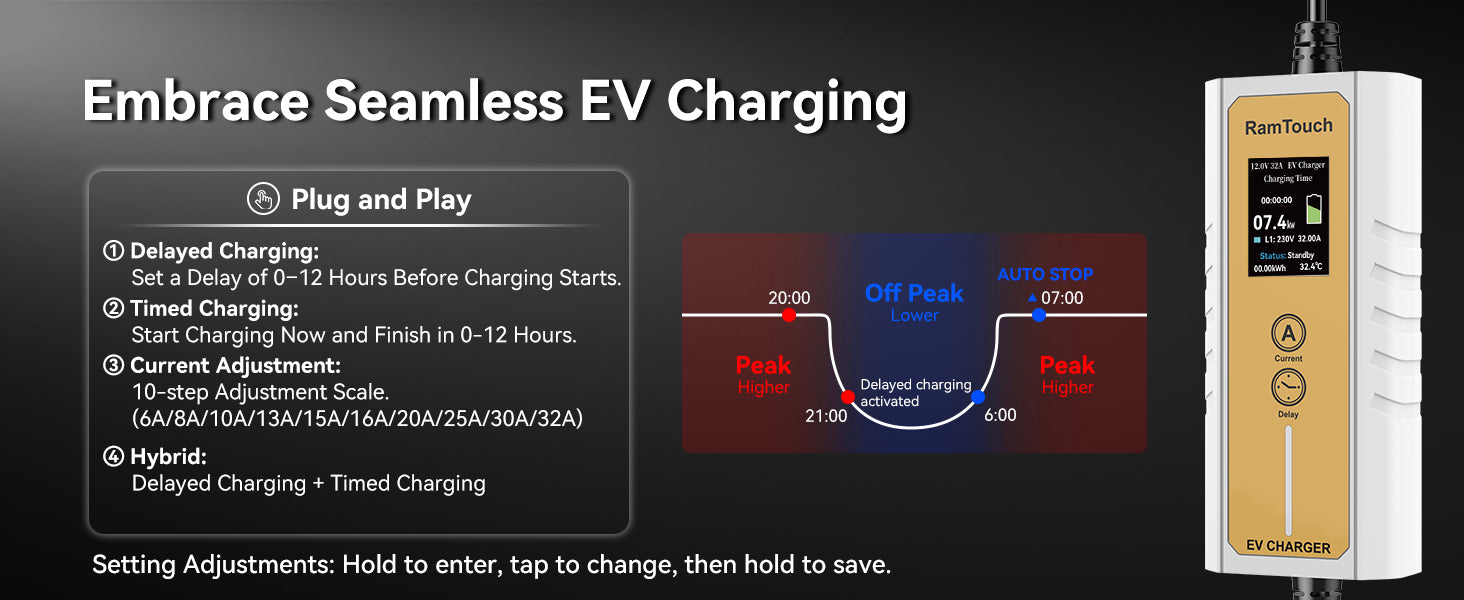

- Smart Memory & Scheduling: Features an integrated memory system alongside versatile scheduling options, including Delay Start and a Session Timer, allowing you to optimize charging during off-peak electricity hours.
- Dedicated Ungrounded Mode: Provides specialized adaptability, ensuring seamless operation across varied and challenging electrical environments.
Certified Safety & All-Weather Durability
- TÜV SÜD Certified: Fully tested and compliant with rigorous EN IEC 62752 standards for Mode 2 electric vehicle supply equipment (IC-CPD).

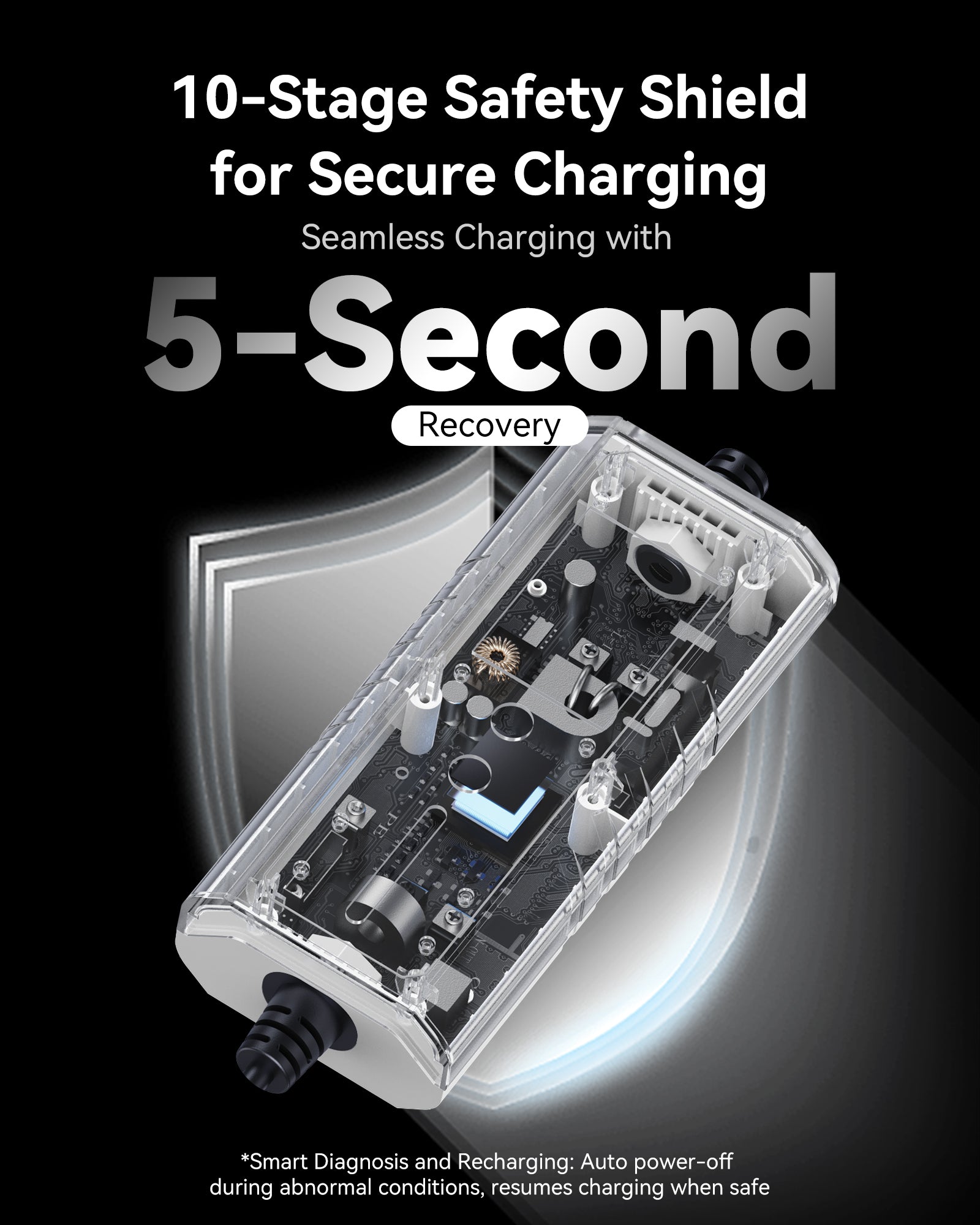

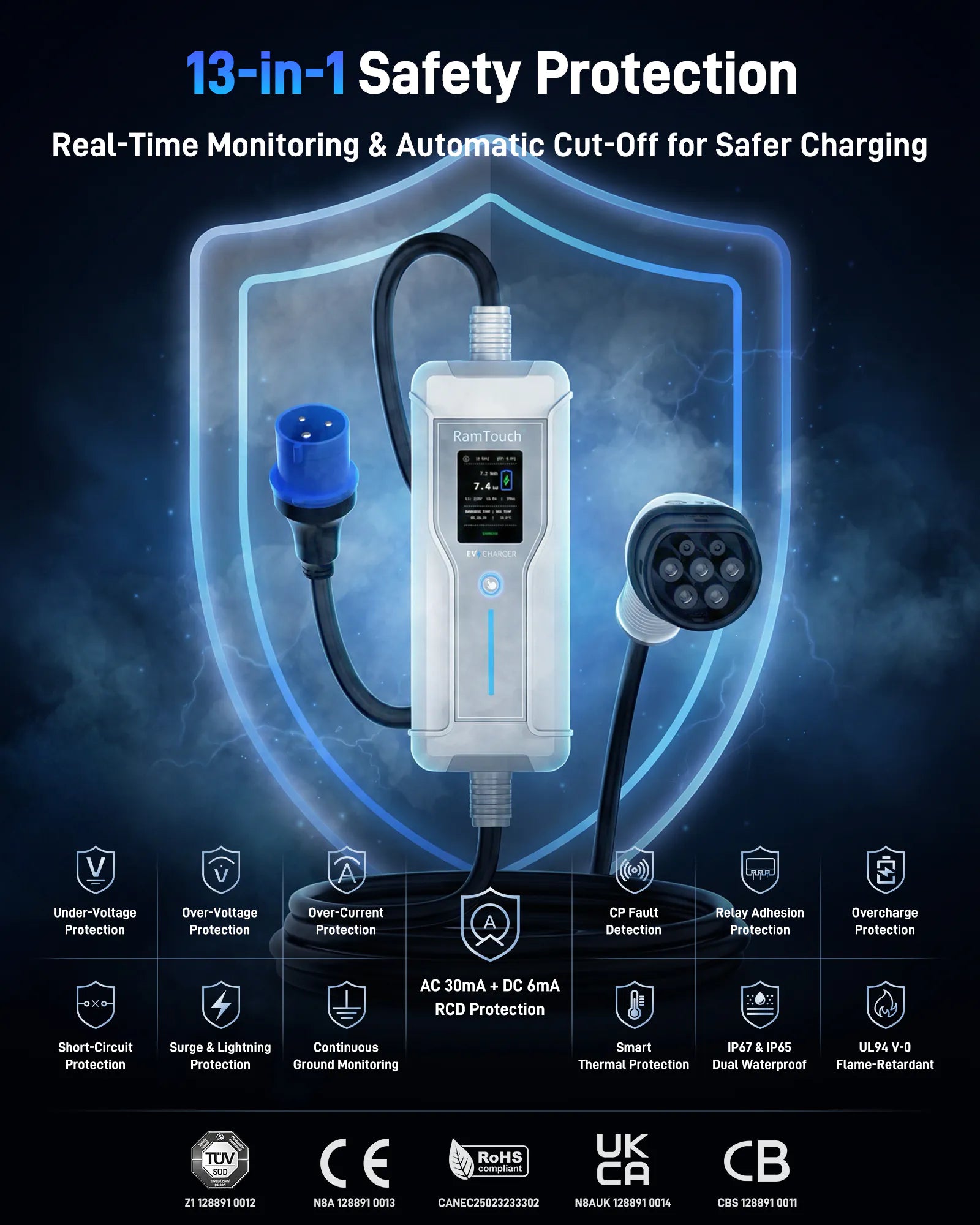

- 13-Layer Advanced Protection: Outfitted with robust AC 30mA + DC 6mA RCD leakage protection, lightning protection, and an intelligent fault-detection system with a Self-Recovery function to eliminate unnecessary charging interruptions.

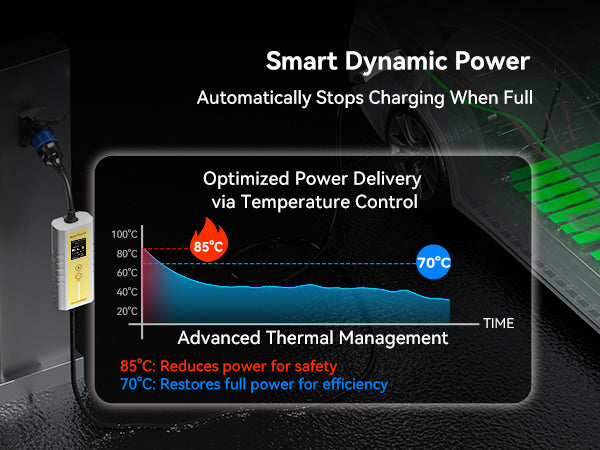

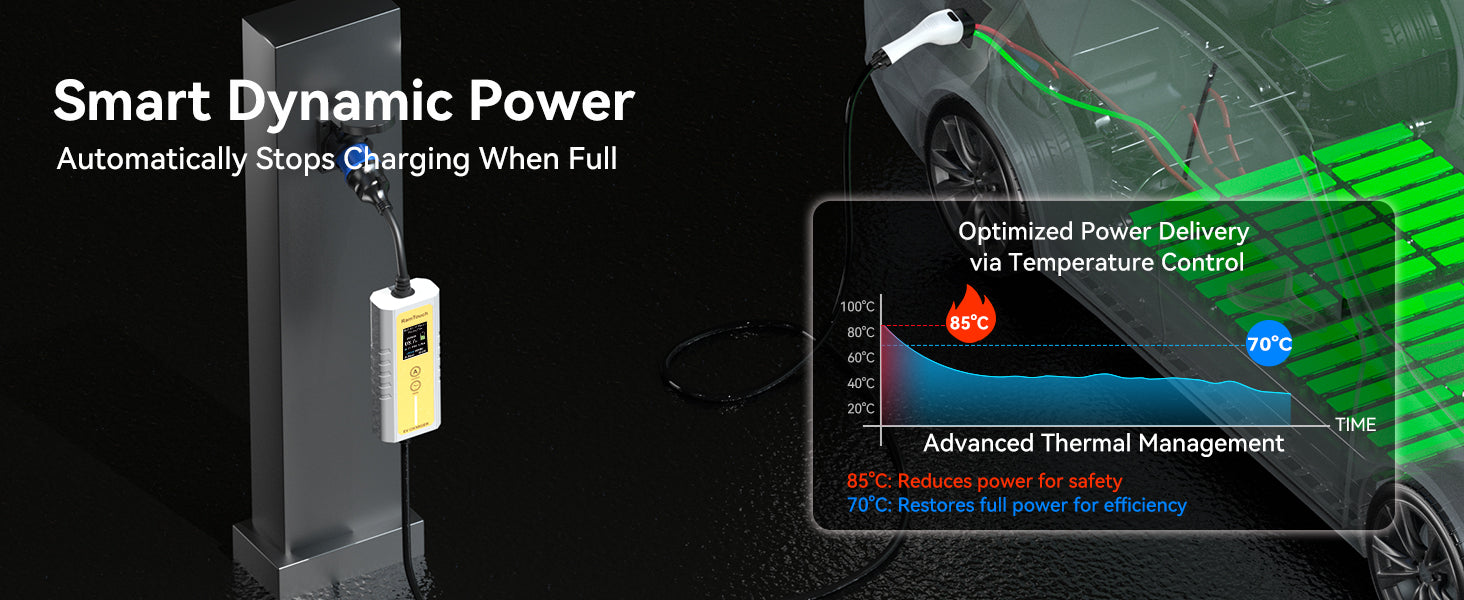

- Dual NTC Thermal Monitoring: Continuous temperature detection located within both the control box and the plug mechanism safeguards against overheating. (Note: Plug temperature monitoring applies specifically to household plug configurations per regulatory requirements.)

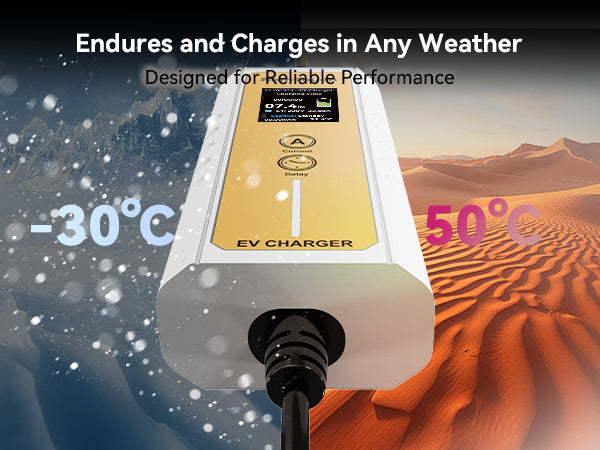

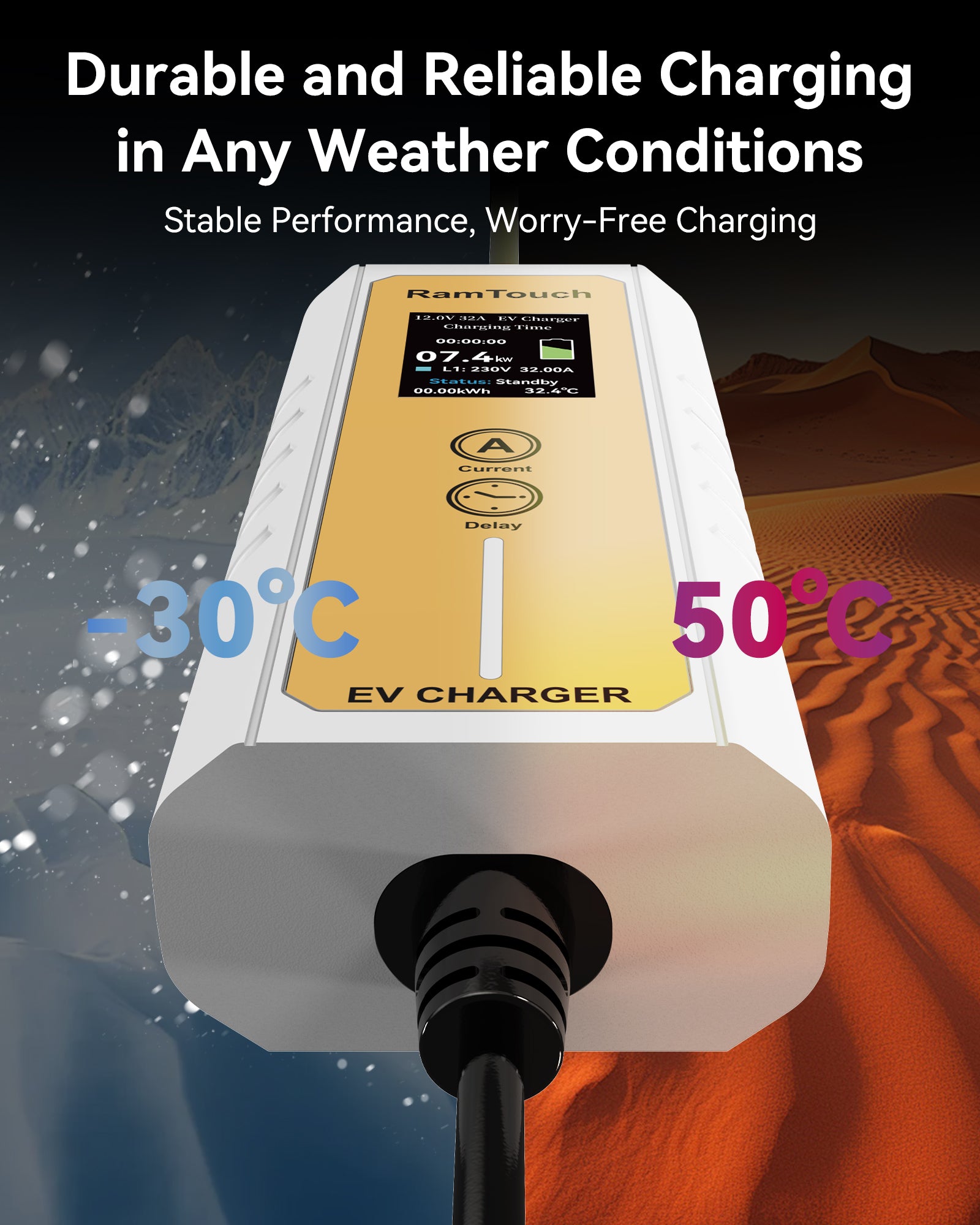

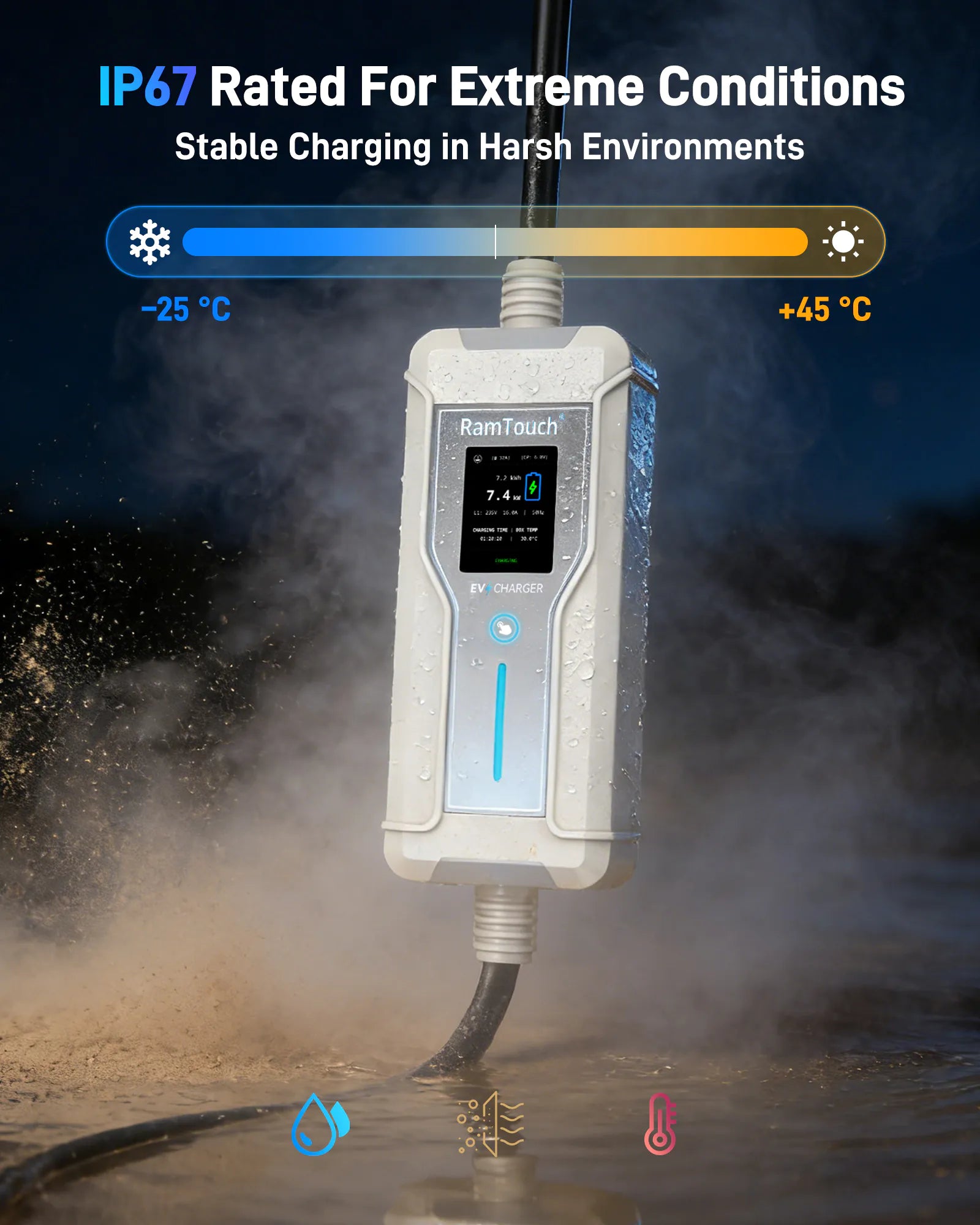

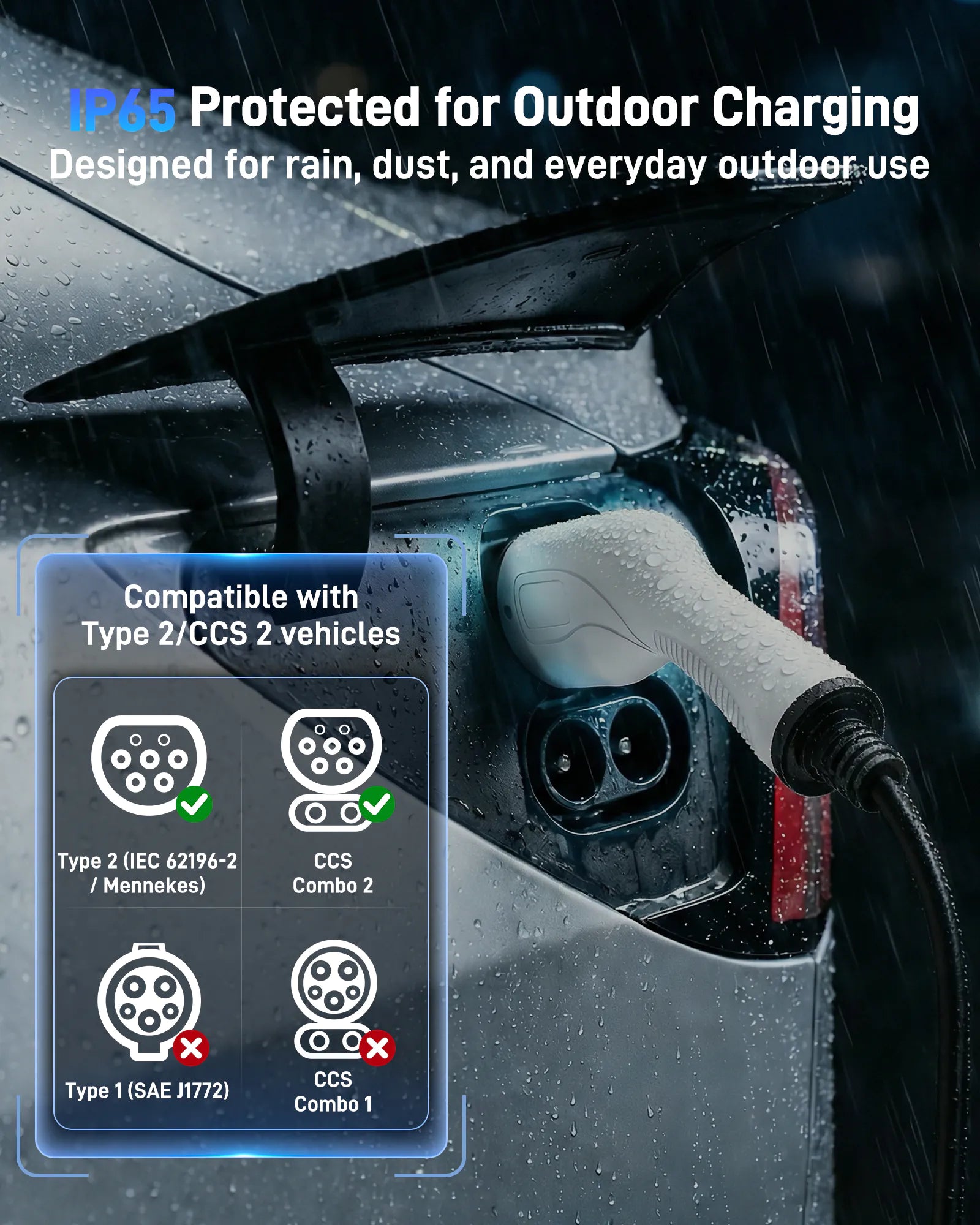

- IP67 Waterproof Control Box: Built to endure harsh outdoor environments, featuring an IP67 waterproof-rated control box paired with an IP65-rated ergonomic Type 2 connector.
Technical Specifications

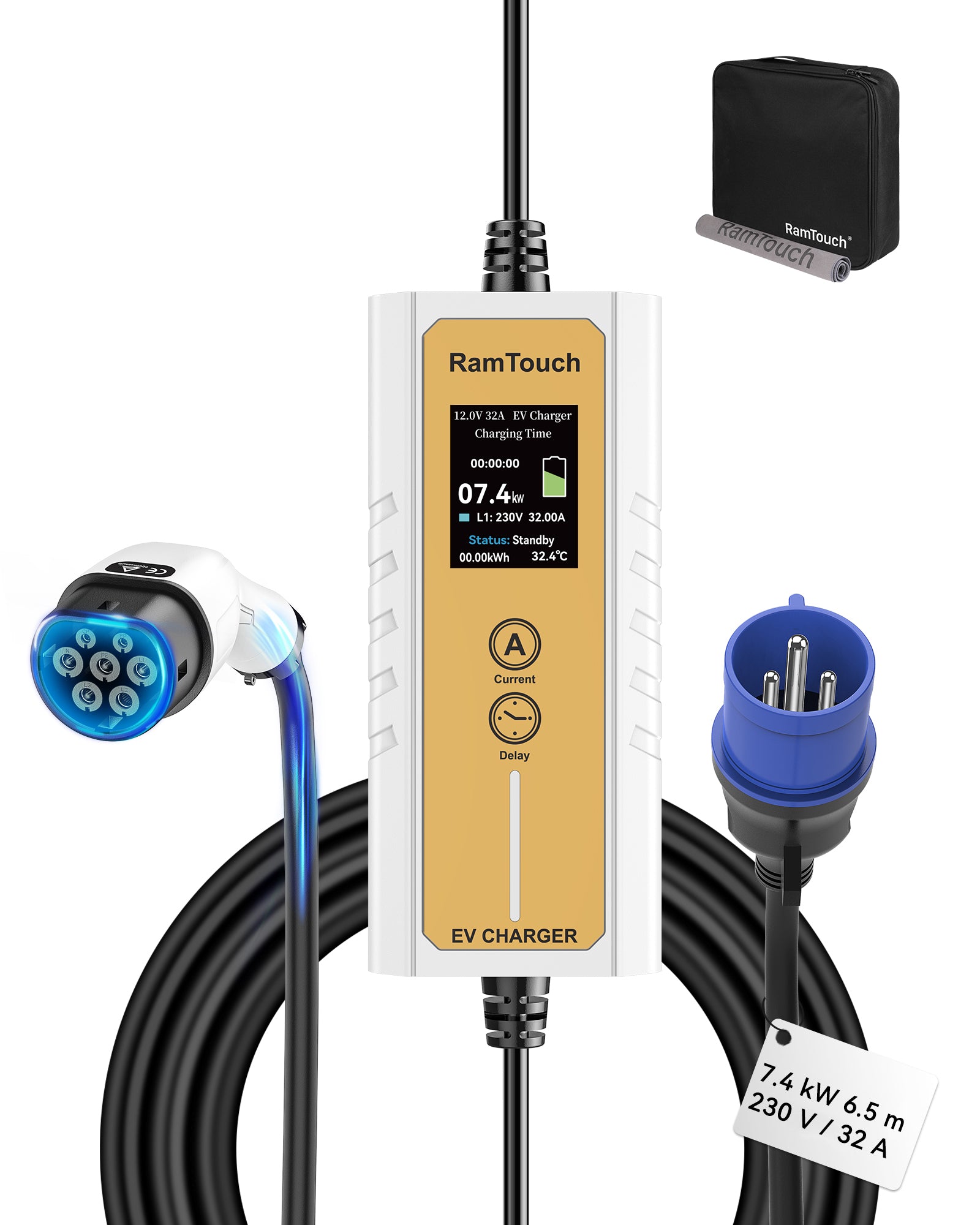

| Product Name | Mode 2 Electric Vehicle Charging Equipment (IC-CPD) / Portable EV Charger |
|---|---|
| Max Output Power | 7.4 kW (32 A @ 230 V AC) |
| Rated Voltage | 230 V AC, 1-Phase, 50/60 Hz |
| Adjustable Current | Smart 9-Stage: 6A / 8A / 10A / 13A / 16A / 20A / 25A / 30A / 32A (with Memory) |

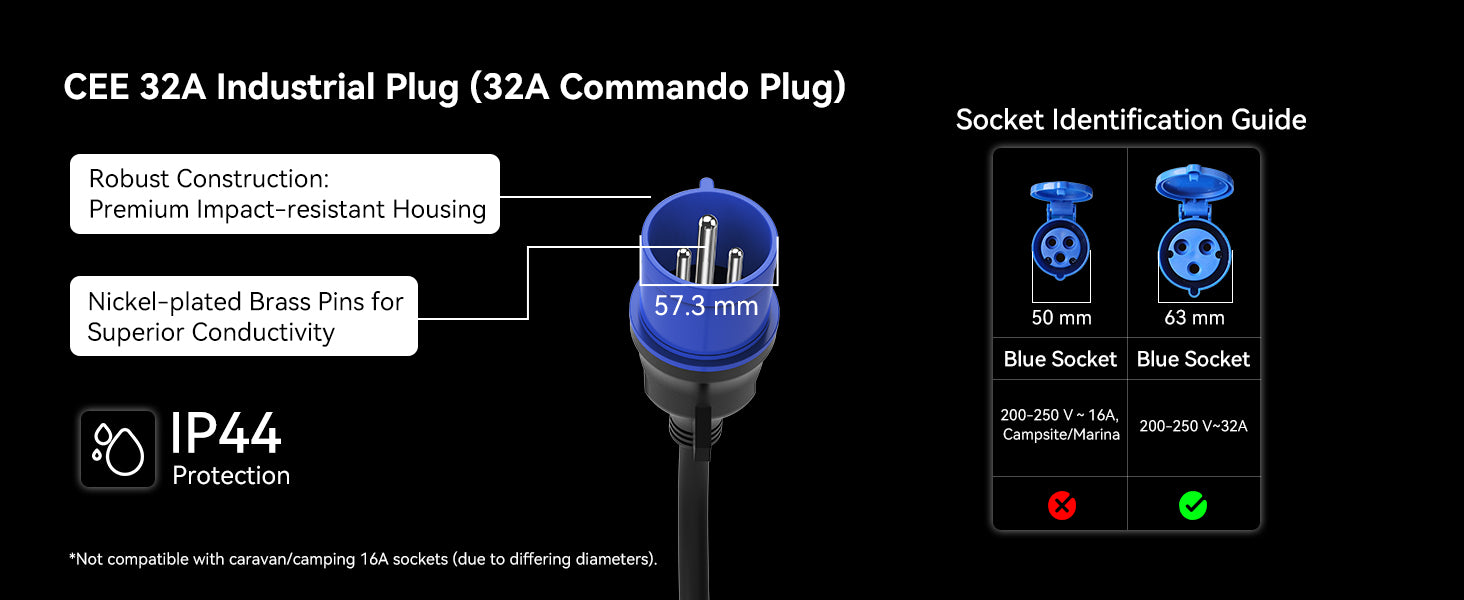

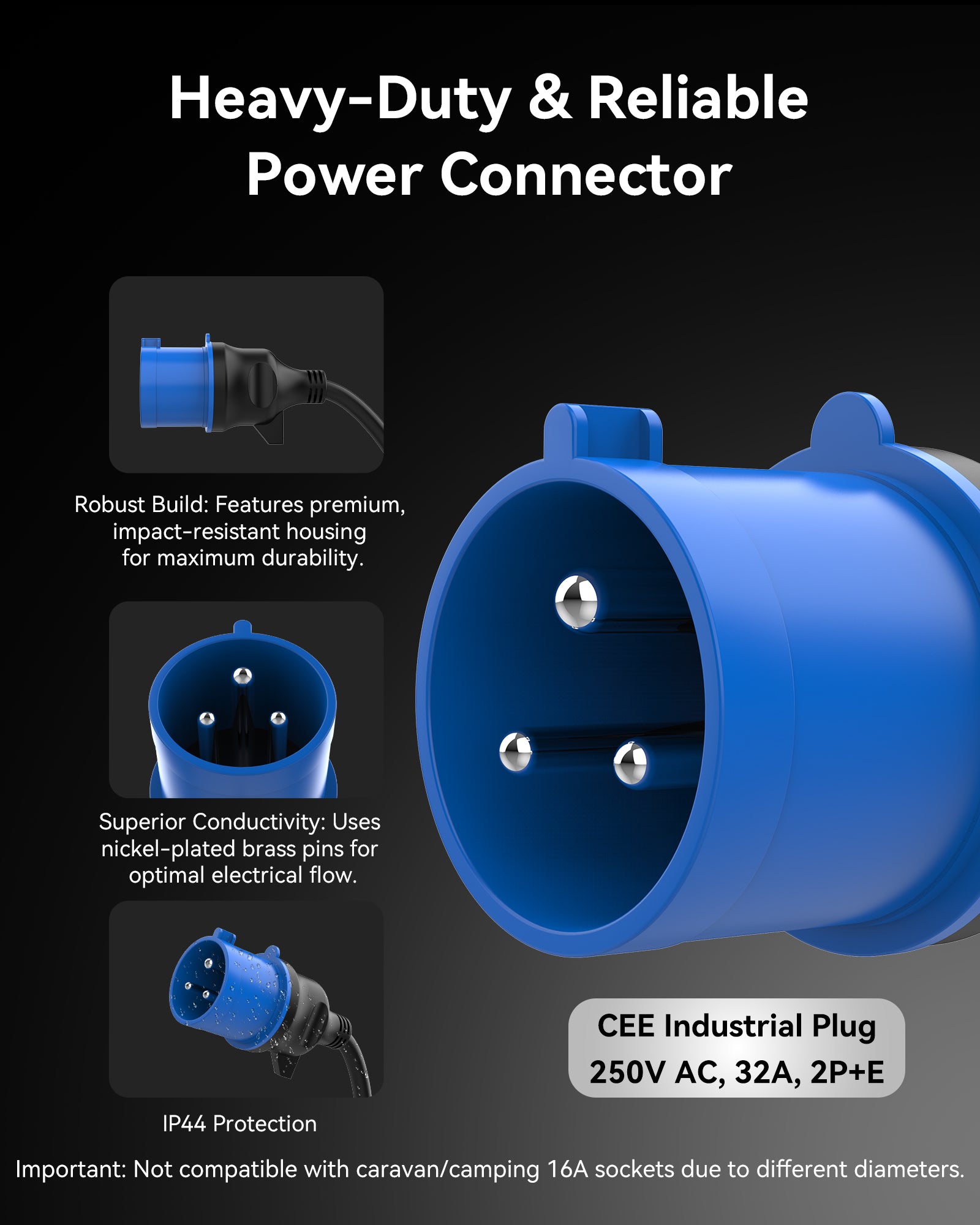

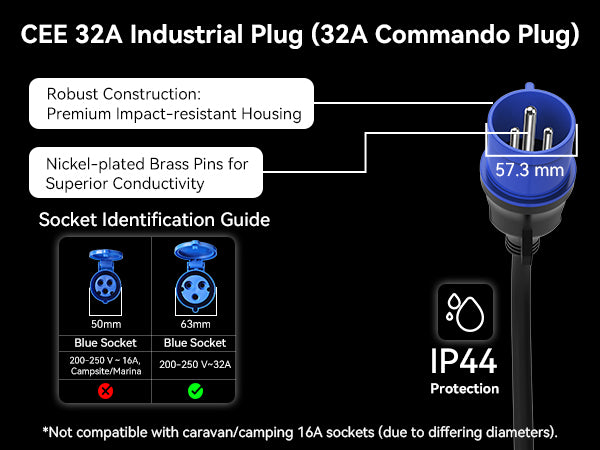

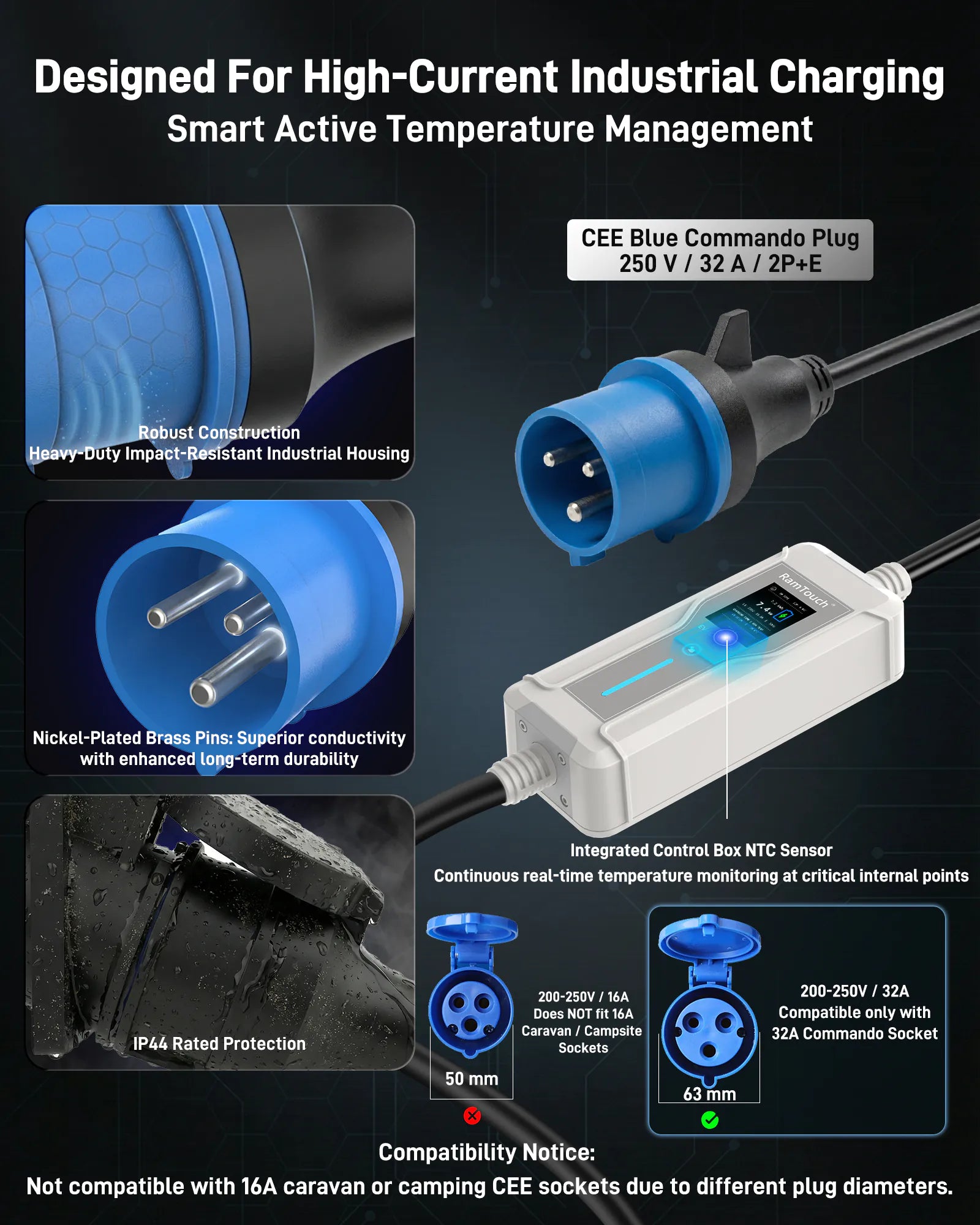

| Power Supply Plug | 32A Blue CEE Commando Industrial Plug (IEC 60309, Type 2P+E) |

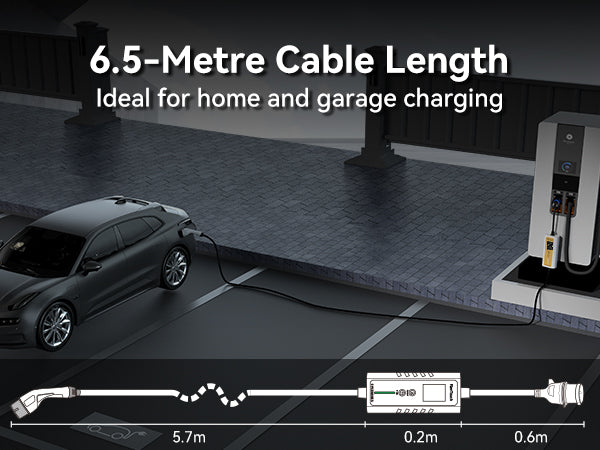

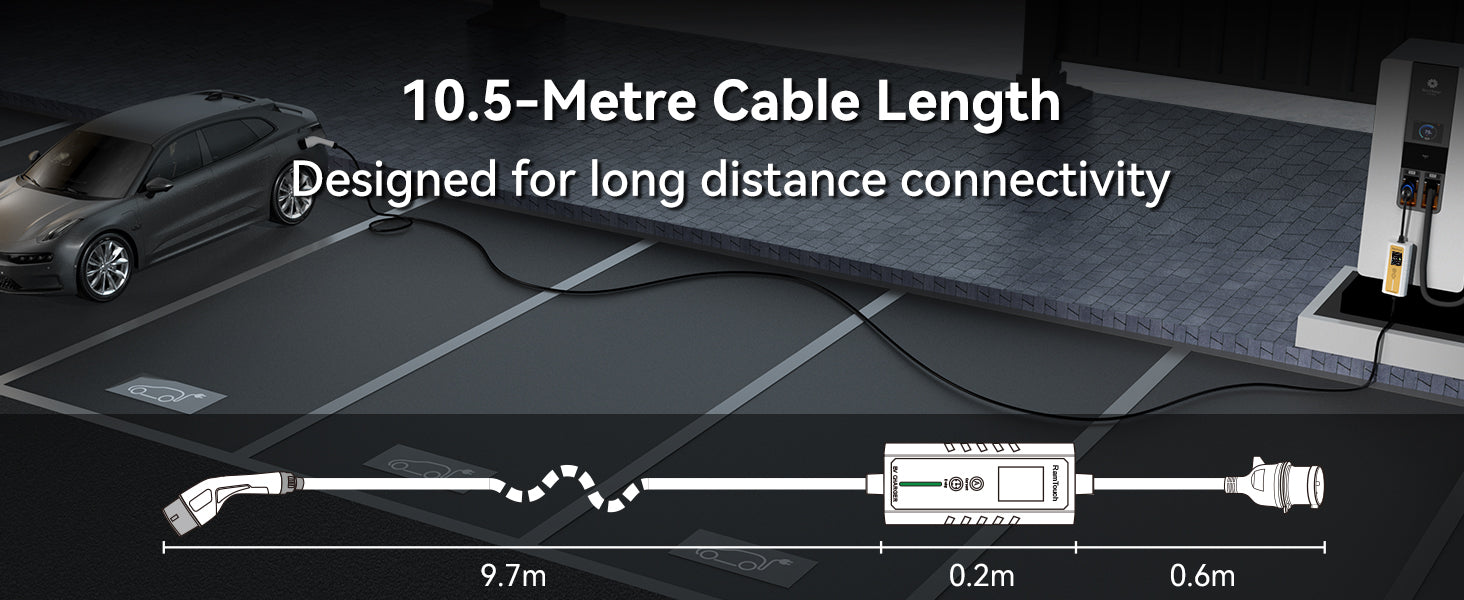

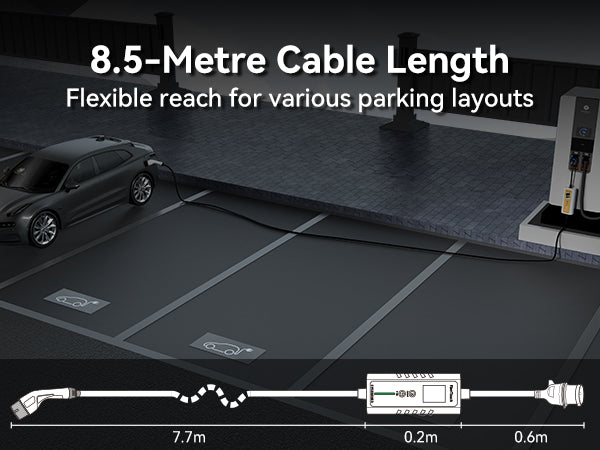

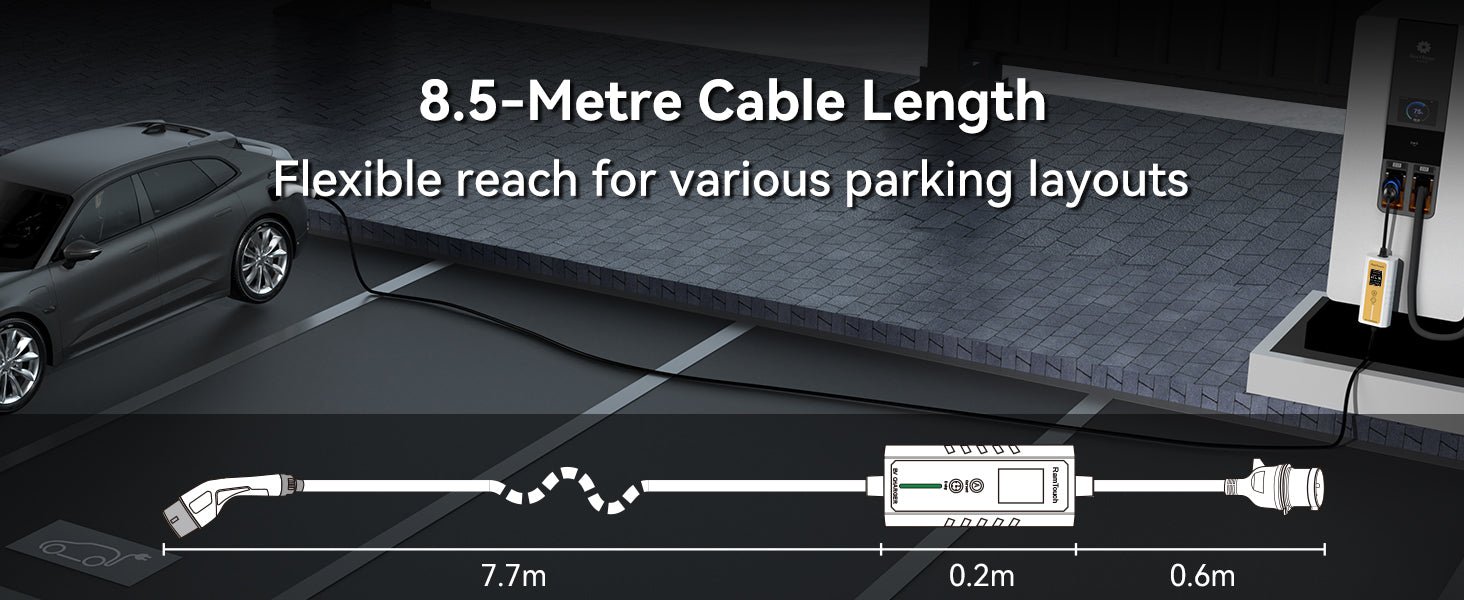

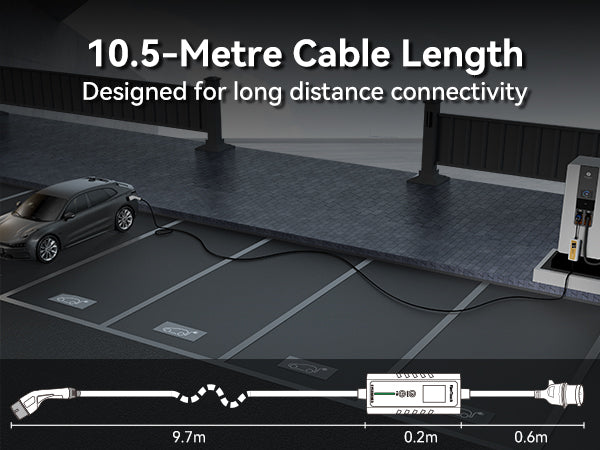

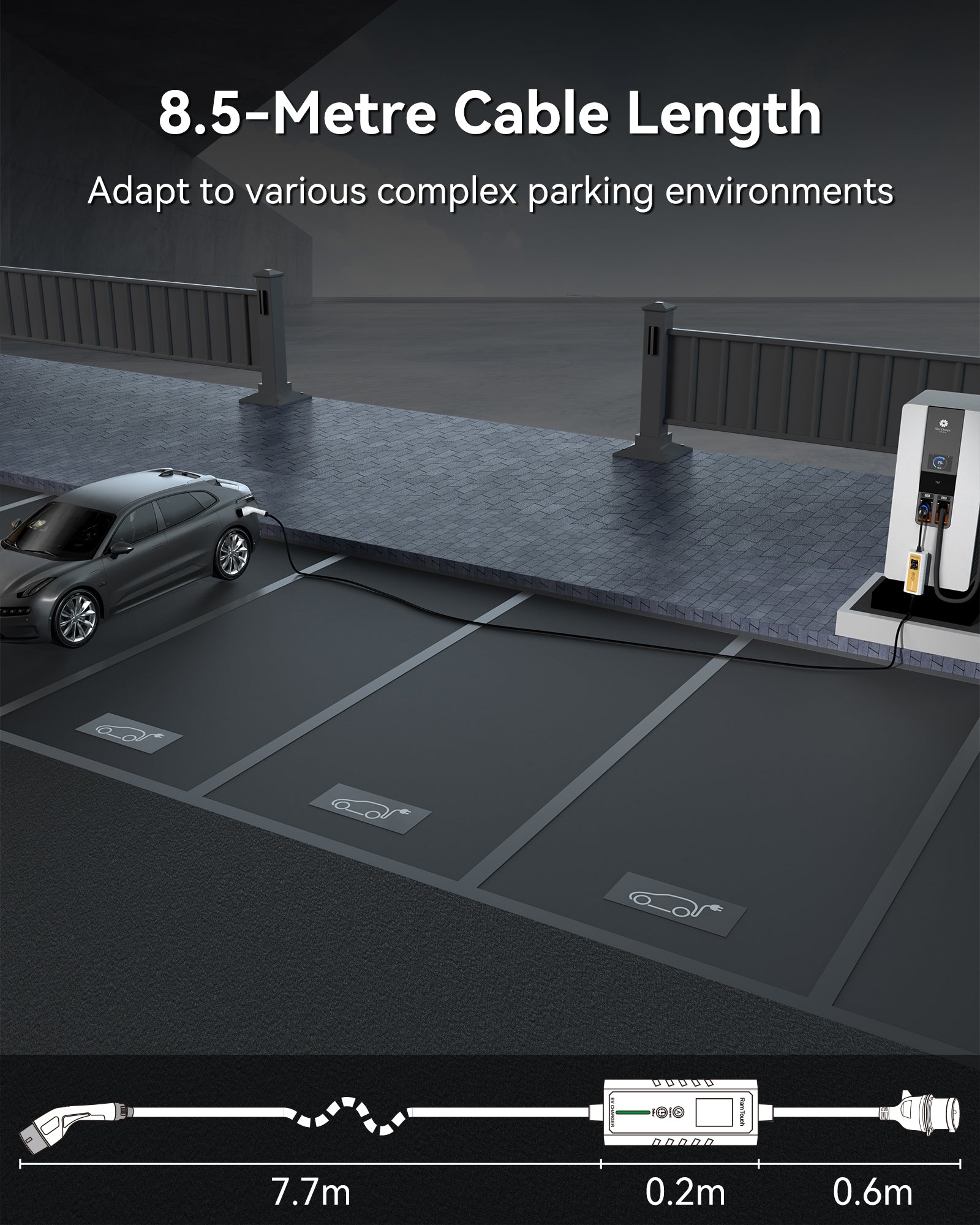

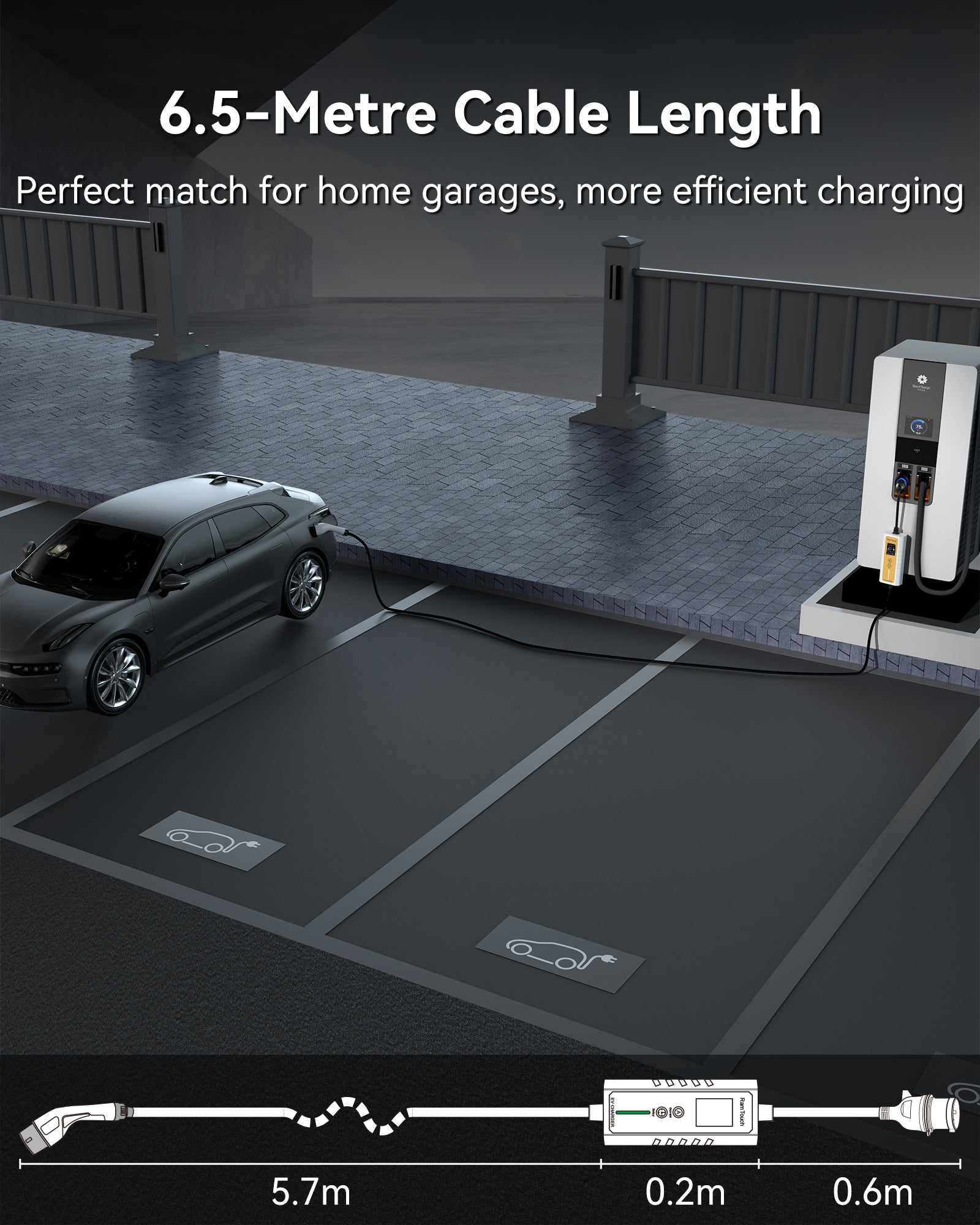

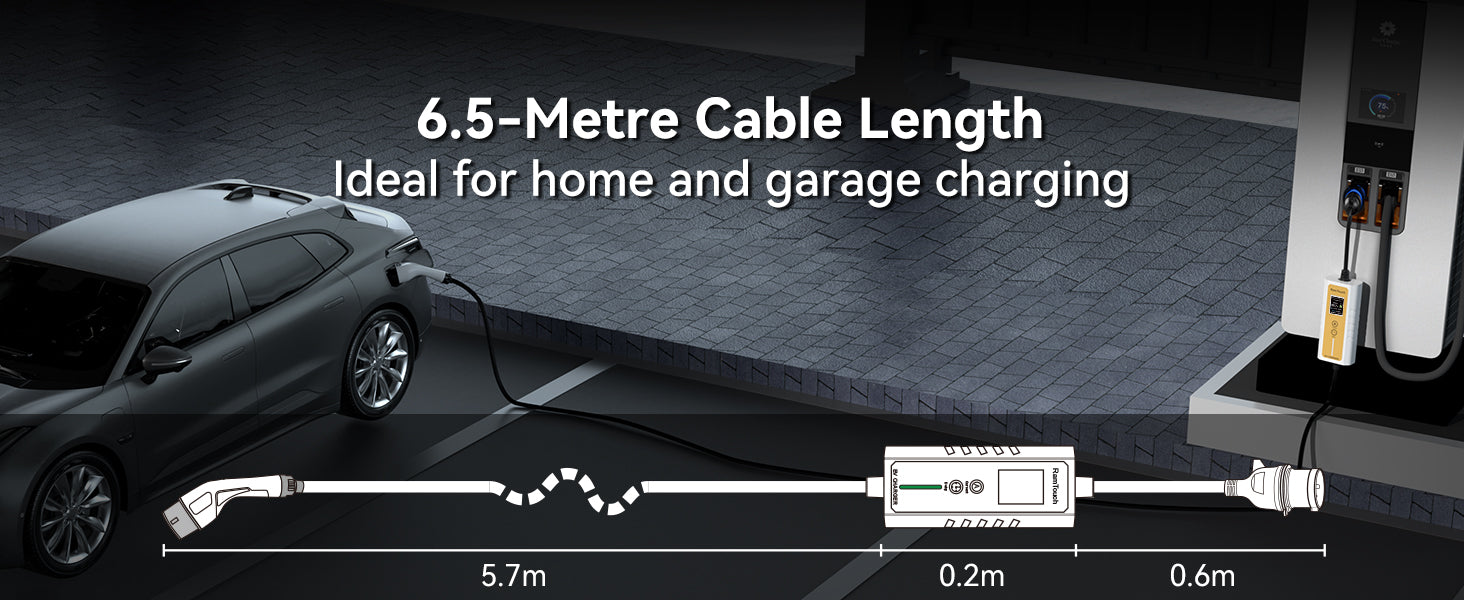

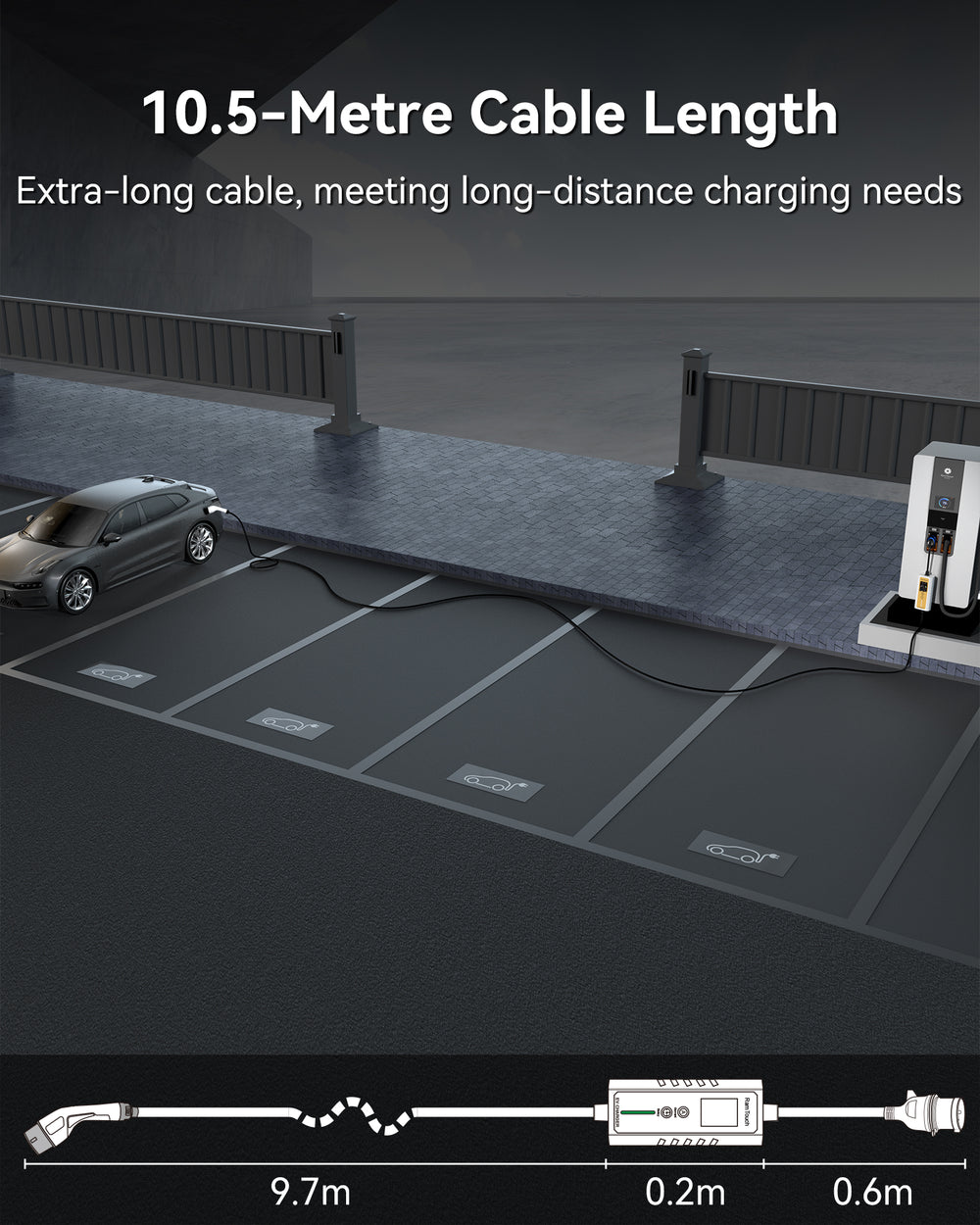

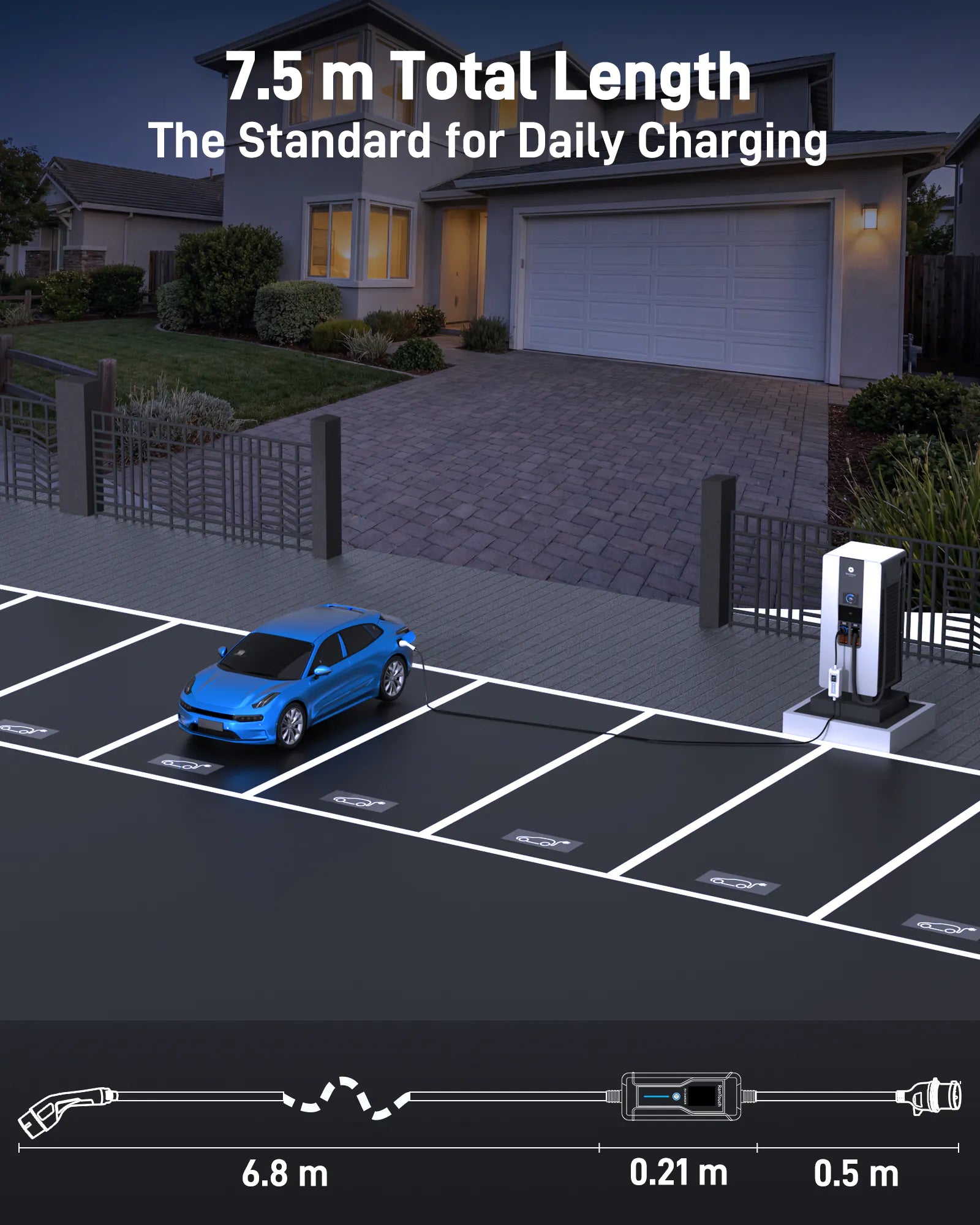

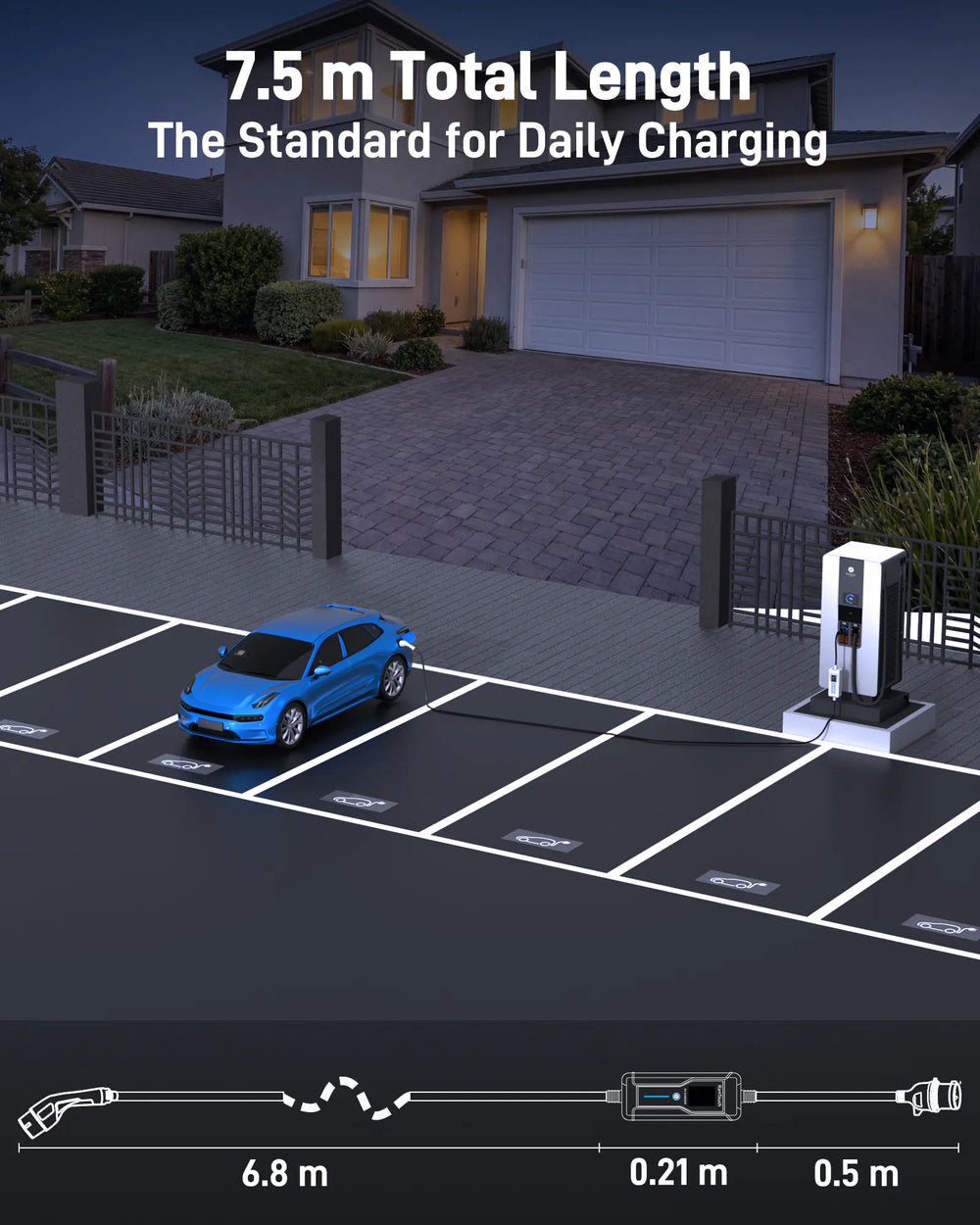

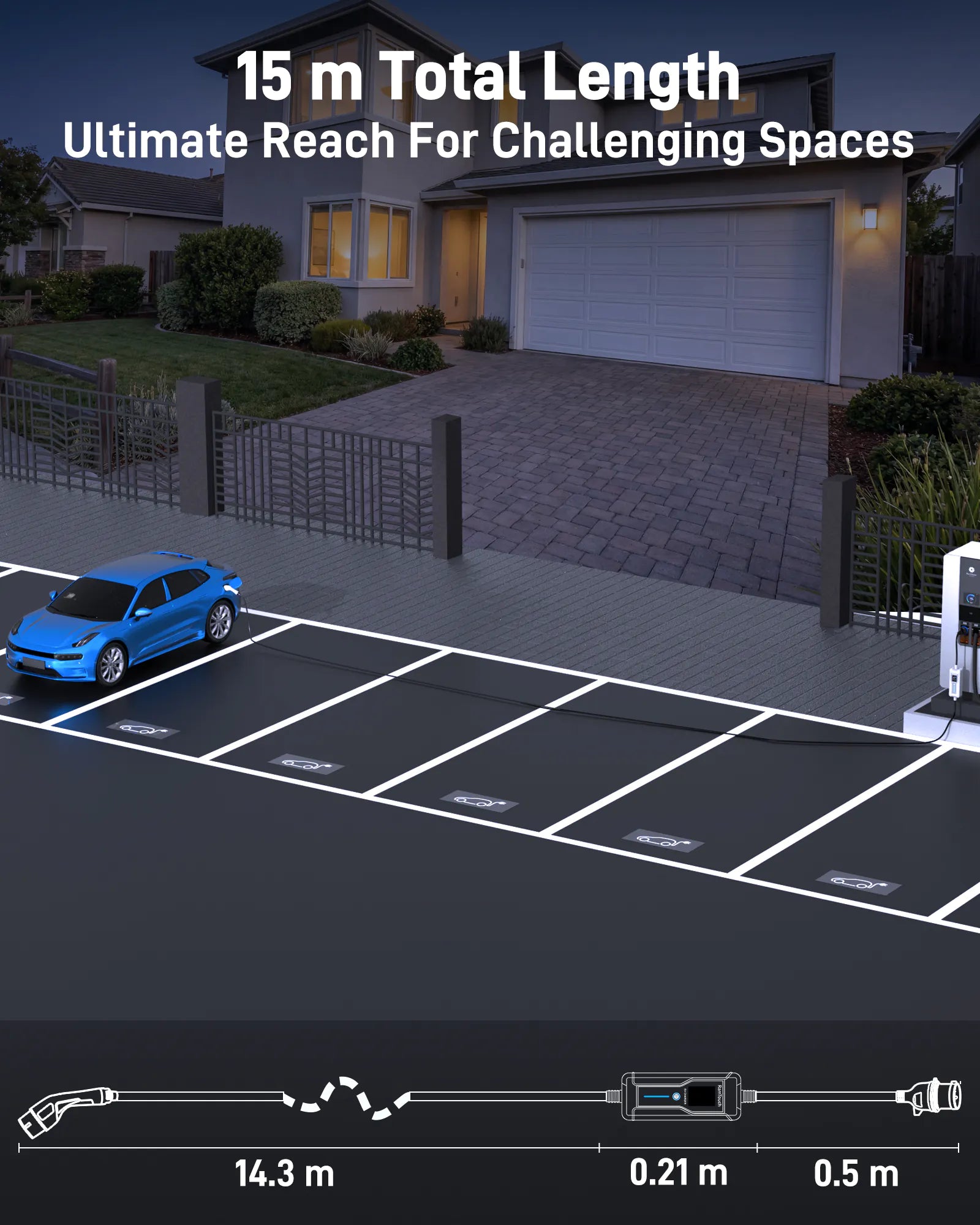

| Total Cable Length Options |
|
| EV Connector | Type 2 (IEC 62196-2, Mennekes) |
| RCD Protection | Dual RCD: AC 30mA + DC 6mA Leakage Protection |
| Ingress Protection | IP67 Rated (Control Box) / IP65 (Connector) |

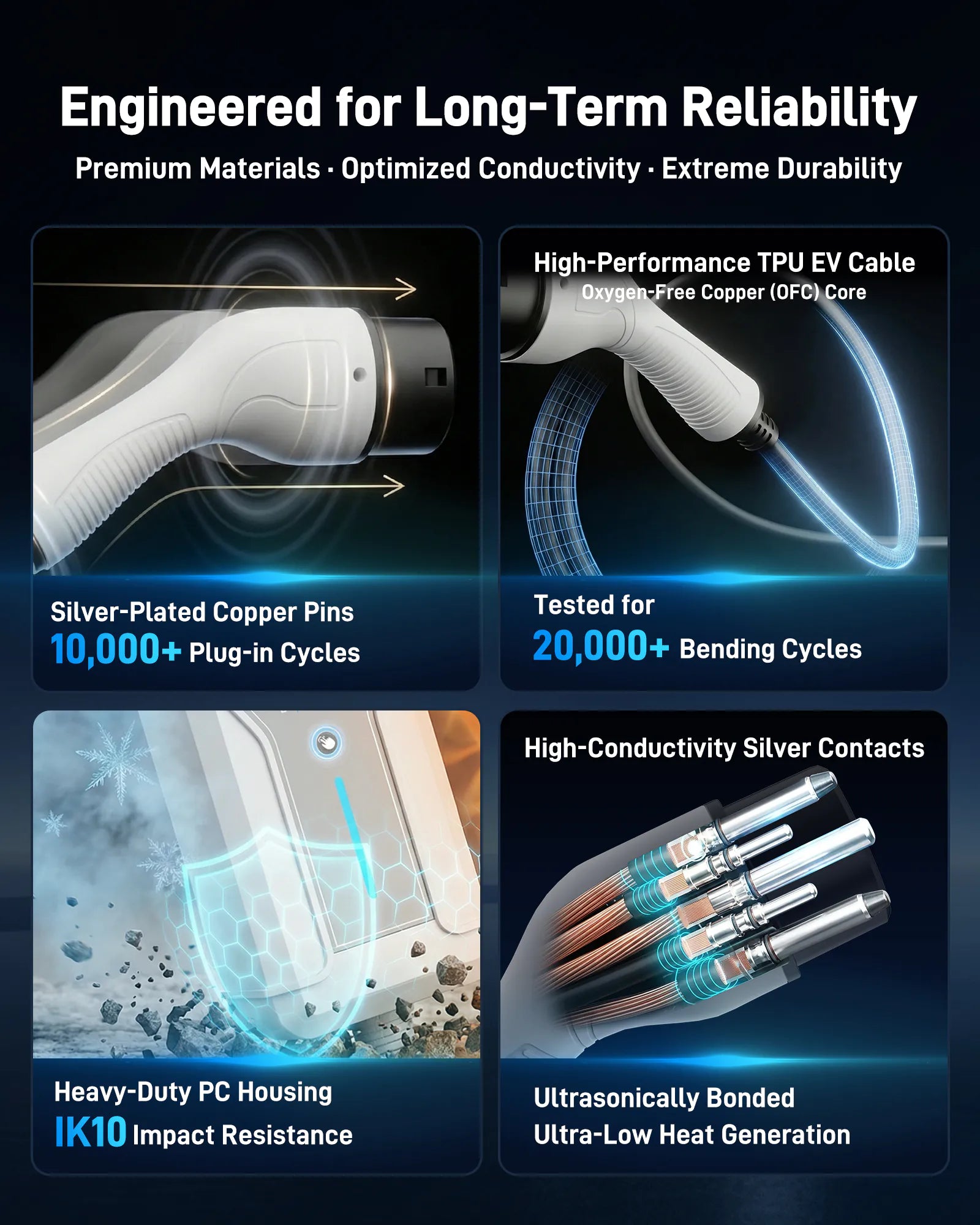

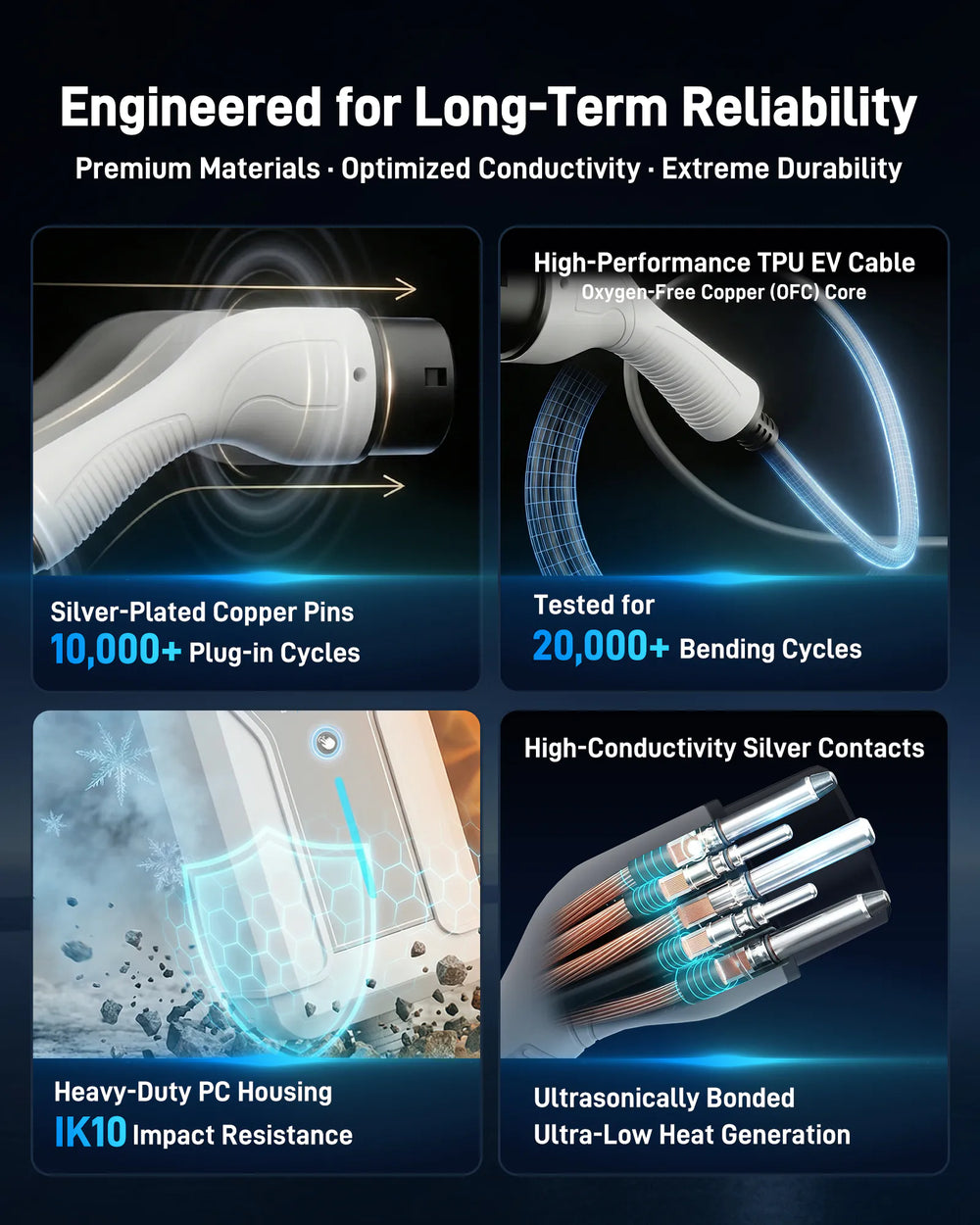

| Cable Type | High-Flex TPU Jacket (H07BZ5-F, 3G 6.0 mm²) |
| Display | 2.4" LCD Color Screen with Intuitive Data UI |
| Control Box Dimensions | 200 mm (L) × 85 mm (W) × 50 mm (H) |
| Housing Durability | IK10 Impact Resistance / UL94 V-0 Flame-Retardant, PC+ABS |
| Operating Temperature | -25 °C to +45 °C |
| Smart Functions | Plug & Play, Current Adjustment, Delay Start, Session Timer, Ungrounded Mode, Energy Cost Setting, Data Summary, Proactive Protection, Smart Self-Recovery |

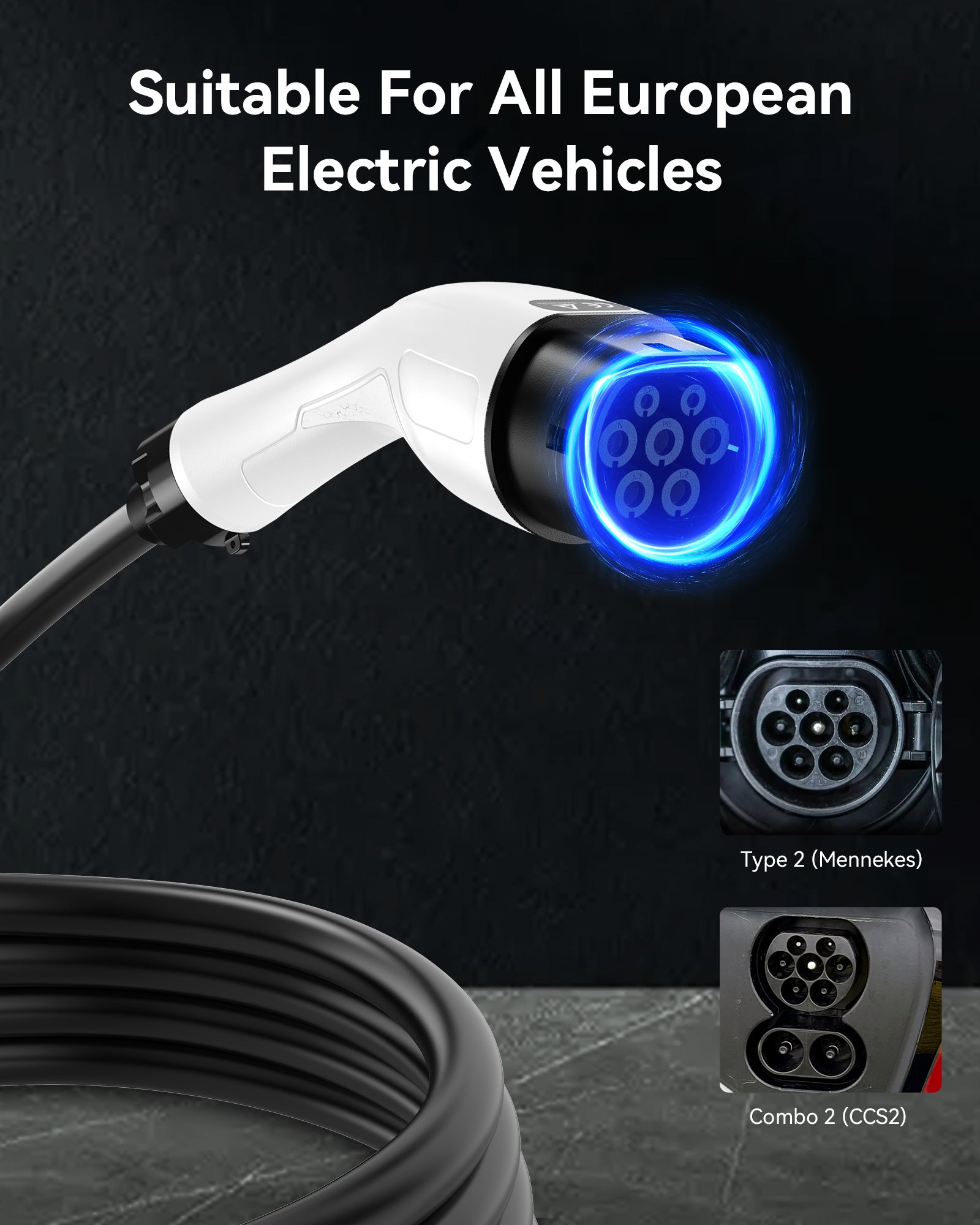

| Universal Compatibility | Supports all BEV & PHEV models (Sedans, SUVs, and Vans) with Type 2 Inlets. |

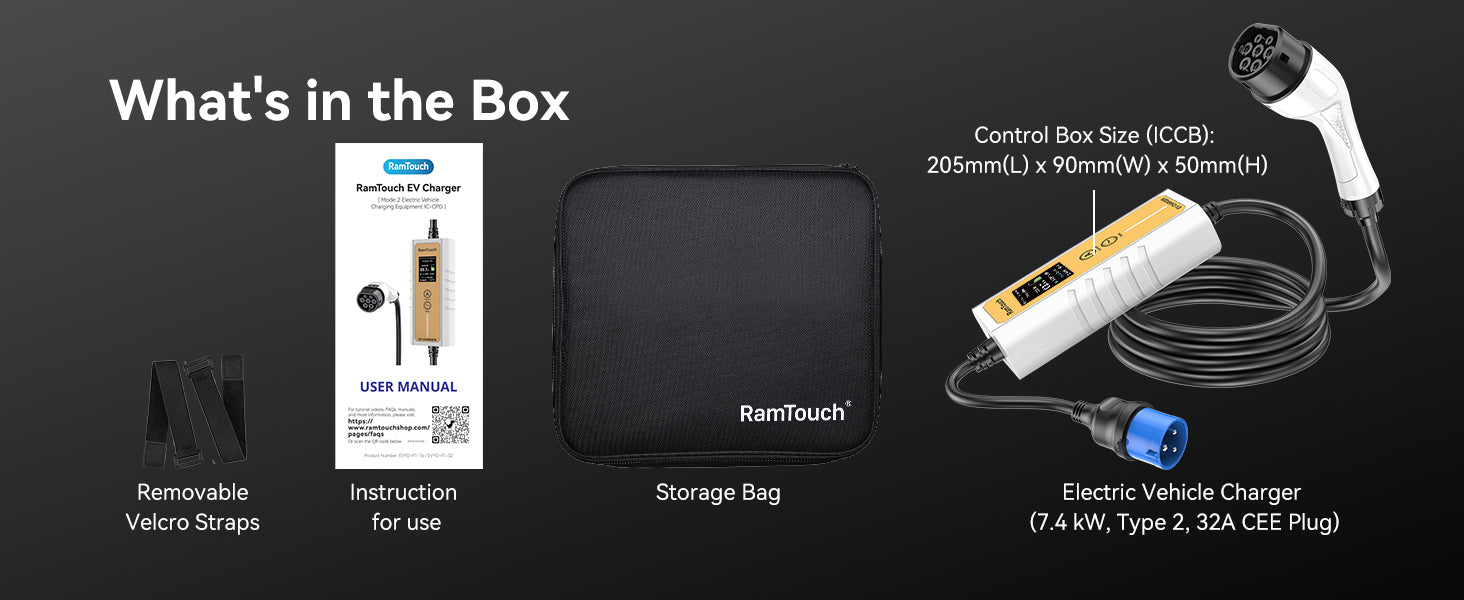

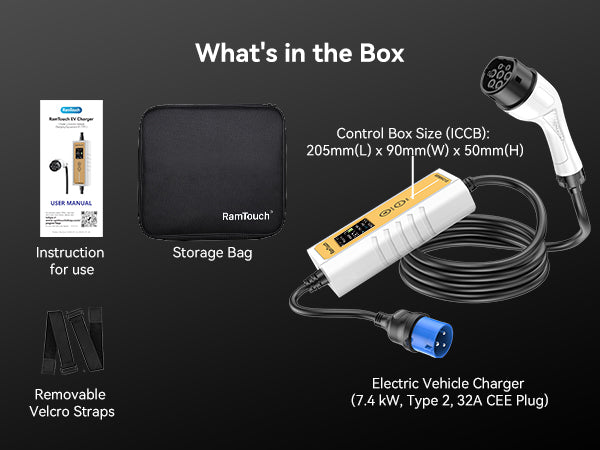

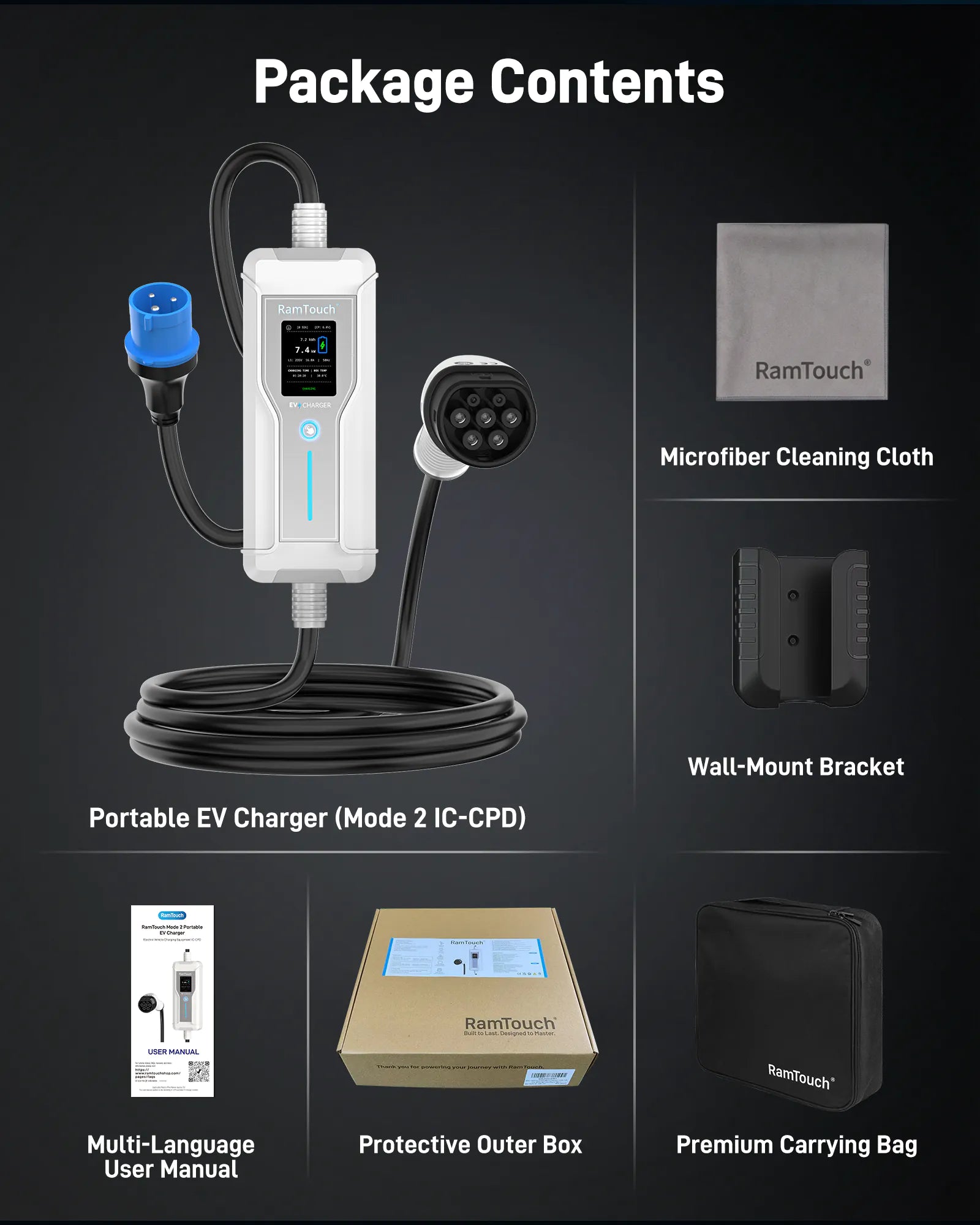

What is in the Box?
- 1 x Portable Mode 2 EV Charger (Type 2 to CEE 32A)
- 1 x Heavy-Duty Wall-Mount Bracket
- 1 x Premium Storage Carry Bag
- 1 x User Manual
