Description
xHigh Power Three Phase Charging & Power Management

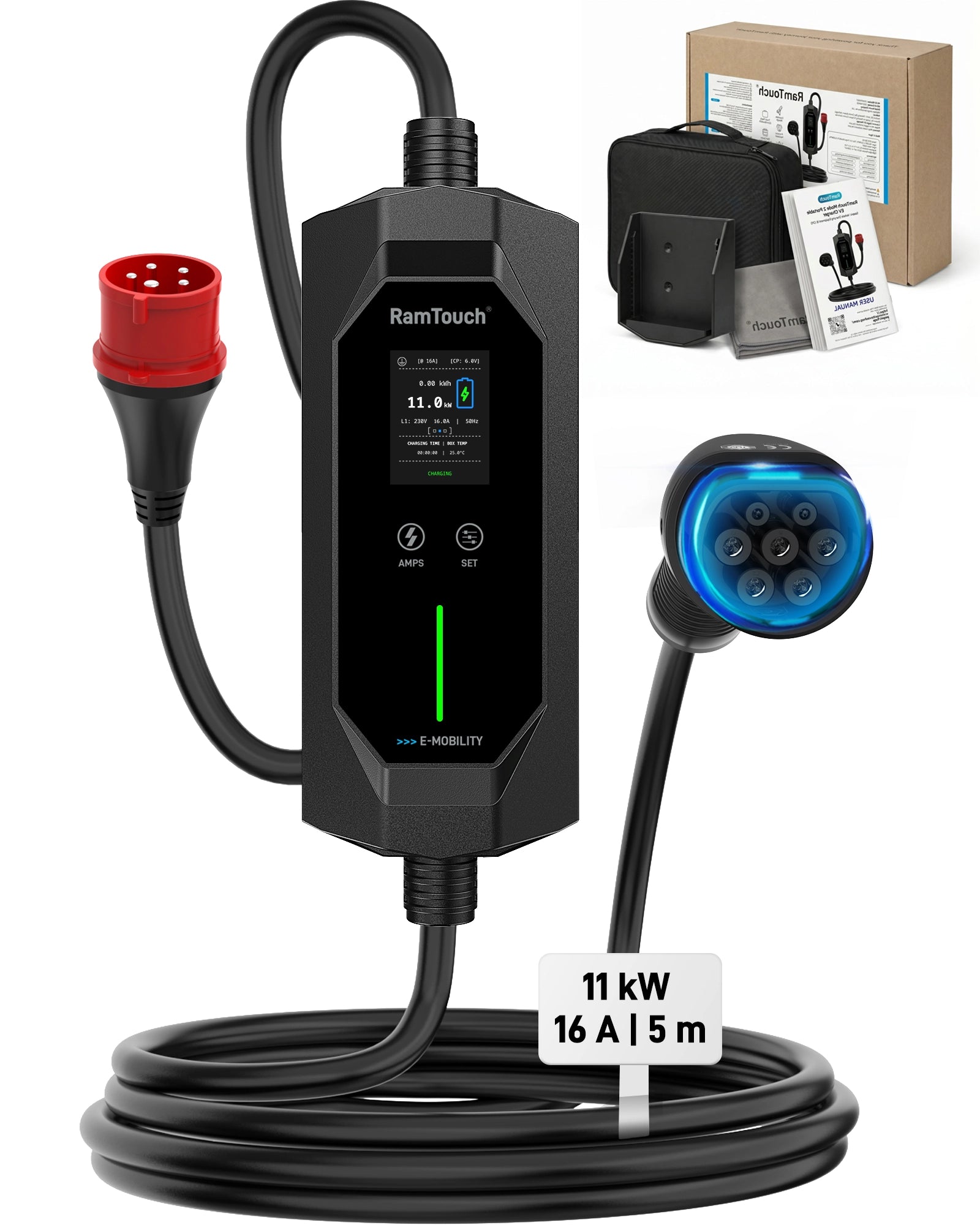

The RamTouch 11 kW portable EV charger features a industrial-grade red 16 A 5-pin CEE plug to Type 2 connector. This robust three-phase configuration supports high-performance charging up to 11 kW at 400 V (3×16 A), delivering approximately 67 km (42 miles) of range per hour of charging under optimal conditions. An integrated intelligent power controller offers 5 selectable current levels: 6A, 8A, 10A, 13A, and 16A, allowing you to adapt the electrical load precisely to your specific socket condition, vehicle requirements, and grid installation capacity. (Note: Actual charging speed remains subject to the vehicle’s onboard charger, battery management system, and immediate charging environment.)
Next-Gen Smart Technology
- Intuitive 2.4-Inch LCD Display: Real-time monitoring interface accurately tracks critical parameters during operation, including charging current, voltage, active duration, temperature, and cumulative energy consumption.
- Smart Memory & Scheduling: Built-in microprocessor supports automated current memory, delayed start configurations, and session timers to streamline energy management and optimize charging schedules around off-peak electricity periods.
- Dedicated Ungrounded Mode: Engineered to provide specialized operational adaptability for specific localized electrical grid infrastructures lacking standard grounding. (Always operate this configuration in strict accordance with the user manual and local electrical guidelines.)
Certified Safety & Durable Outdoor Design
- TÜV SÜD Certified Compliance: Fully tested and certified under EN IEC 62752 standards for Mode 2 electric vehicle supply equipment (IC-CPD).
- Comprehensive AC/DC RCD Protection: Outfitted with integrated hardware for AC 30 mA + DC 6 mA residual current protection, overvoltage cutoff, undervoltage cutoff, overcurrent shielding, and proactive fault detection.
- Dual NTC Temperature Monitoring: Thermal sensors embedded within the control box continuously log internal operating heat to prevent localized thermal overload under continuous rated current parameters.
- Weatherproof Ingress Protection: Constructed with an IP67 waterproof-rated control box paired with an IP65 weather-resistant Type 2 connector to withstand demanding outdoor operational deployments.
Technical Specifications
| Product Name | Mode 2 Electric Vehicle Charging Equipment (IC-CPD) / Portable EV Charger |
|---|---|
| Max Output Power | 11 kW (16 A @ 400 V AC, Three Phase) |
| Rated Voltage | 400 V AC, Three Phase, 50/60 Hz |
| Adjustable Current | Smart 5-Stage: 6A / 8A / 10A / 13A / 16A (with Intelligent Memory) |
| Power Supply Plug | Red CEE 16 A 5-Pin Industrial Plug (3P+N+E Configuration) |
| EV Connector Interface | Type 2 (IEC 62196-2 / Mennekes Specification) |
| RCD Leakage Protection | Dual Protective Network: AC 30 mA + DC 6 mA Residual Current Detection |
| Ingress Protection (IP) | IP67 Rated Control Box / IP65 Rated Vehicle Connector |
| Cable Configuration | High-Flex TPU Jacket (H07BZ5-F, 5G 2.5 mm²) |
| Control Box Dimensions | 23 cm × 9.5 cm × 5.5 cm |
| Housing Material & Durability | Impact-Resistant PC+ABS (IK10 Rating / UL94 V-0 Flame-Retardant) |
| Operating Temperature Range | -25 °C to +45 °C |
| Smart Functions | Plug & Play, Current Selection, Delay Start, Session Timer, Ungrounded Mode, Energy Cost Configuration, Data Summary, Smart Self-Recovery |
| Vehicle Compatibility | Fully supports all Battery Electric Vehicles (BEV) and Plug-in Hybrids (PHEV) with Type 2 inlets |
Cable Length Options & Structural Dimensions
| Total Length | Input Cable | Control Box | Output Cable |
|---|---|---|---|
| 5 Metres | 0.5 m | 0.2 m | 4.3 m |
| 7.5 Metres | 0.5 m | 0.2 m | 6.8 m |
| 10 Metres | 0.5 m | 0.2 m | 9.3 m |
| 15 Metres | 0.5 m | 0.2 m | 14.3 m |
Important Operational Guidelines
Deploy this charging hardware exclusively with a compatible, certified red CEE 16 A three-phase industrial socket tied to an electrical installation verified for continuous EV duty cycles. This equipment cannot augment the baseline power limits supplied by the infrastructure. Always configure an operating current level that aligns safely with the localized wiring, plug condition, and target vehicle tolerances.
What is in the Box?
- 1 x Portable Mode 2 Three Phase EV Charger (Type 2 to Red CEE 16A)
- 1 x Heavy-Duty Control Box Wall-Mount Bracket
- 1 x Premium Protective Storage Carry Bag
- 1 x Technical User Manual
