Description
x| Fast 7.4 kW Portable EV Charger: Cover a distance of 45 km in just 1 hour of charging, at 4x the speed of 8 A EV chargers. Built-in maximum power trimmer with multi-step adjustment scale from 8 A to 32 A, can easily adjust the power limit to suit your needs |
| Simplified Smart Charging: Revolutionize charging your EV into a streamlined and convenient process with scheduled charging and real-time monitoring capabilities via an easy-to-use display. Provides intelligent memory for your preferred current settings |

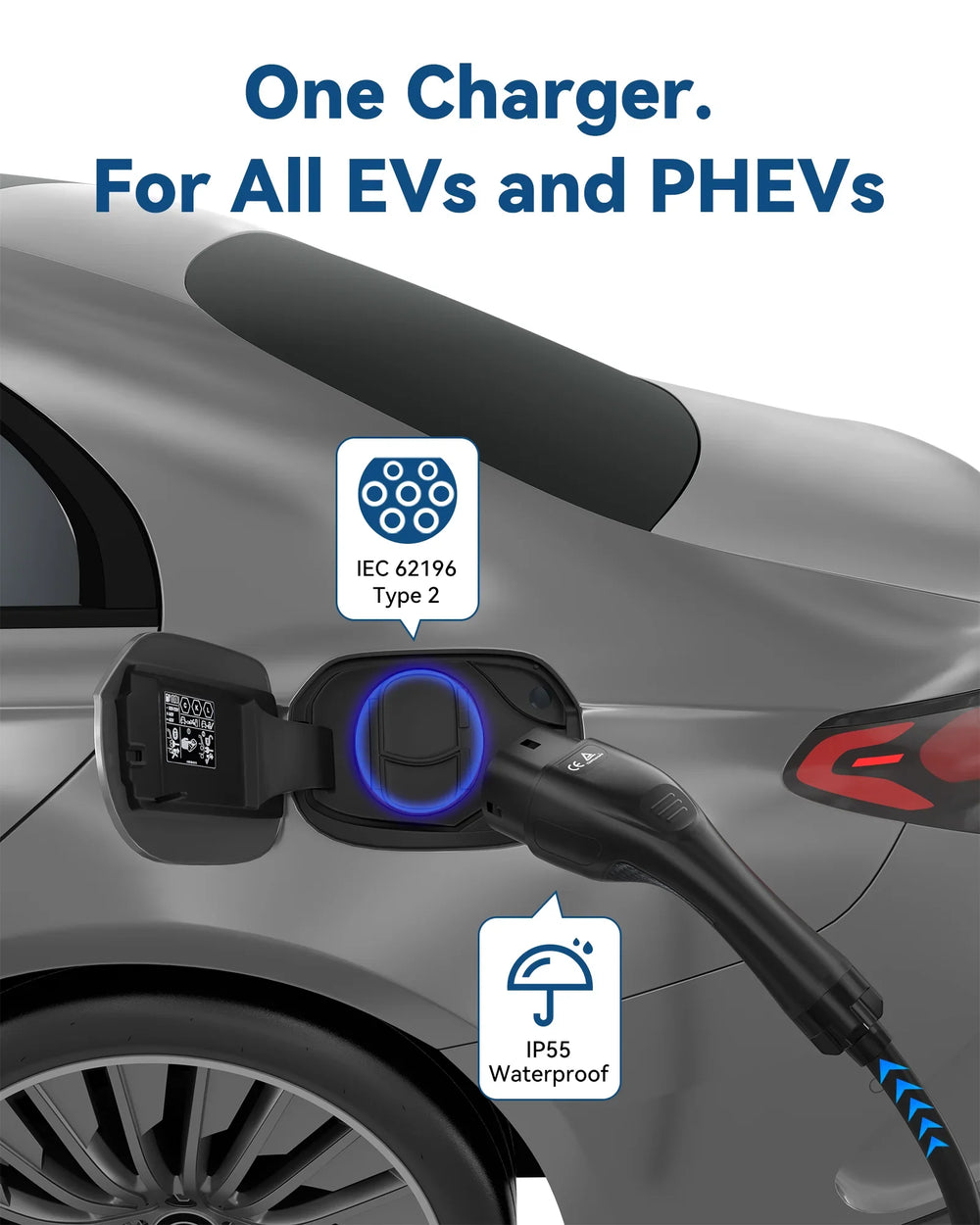

| Compatible with All Type 2 EVs: Designed for a wide range of EVs and hybrids in the UK and EU, this charger boasts a TÜV-certified Type 2 connector and a 32 A CEE plug (32A Commando plug), expertly designed for EV charging to ensure compatibility with CEE 32 A sockets (Diameter approx. 64 mm) |

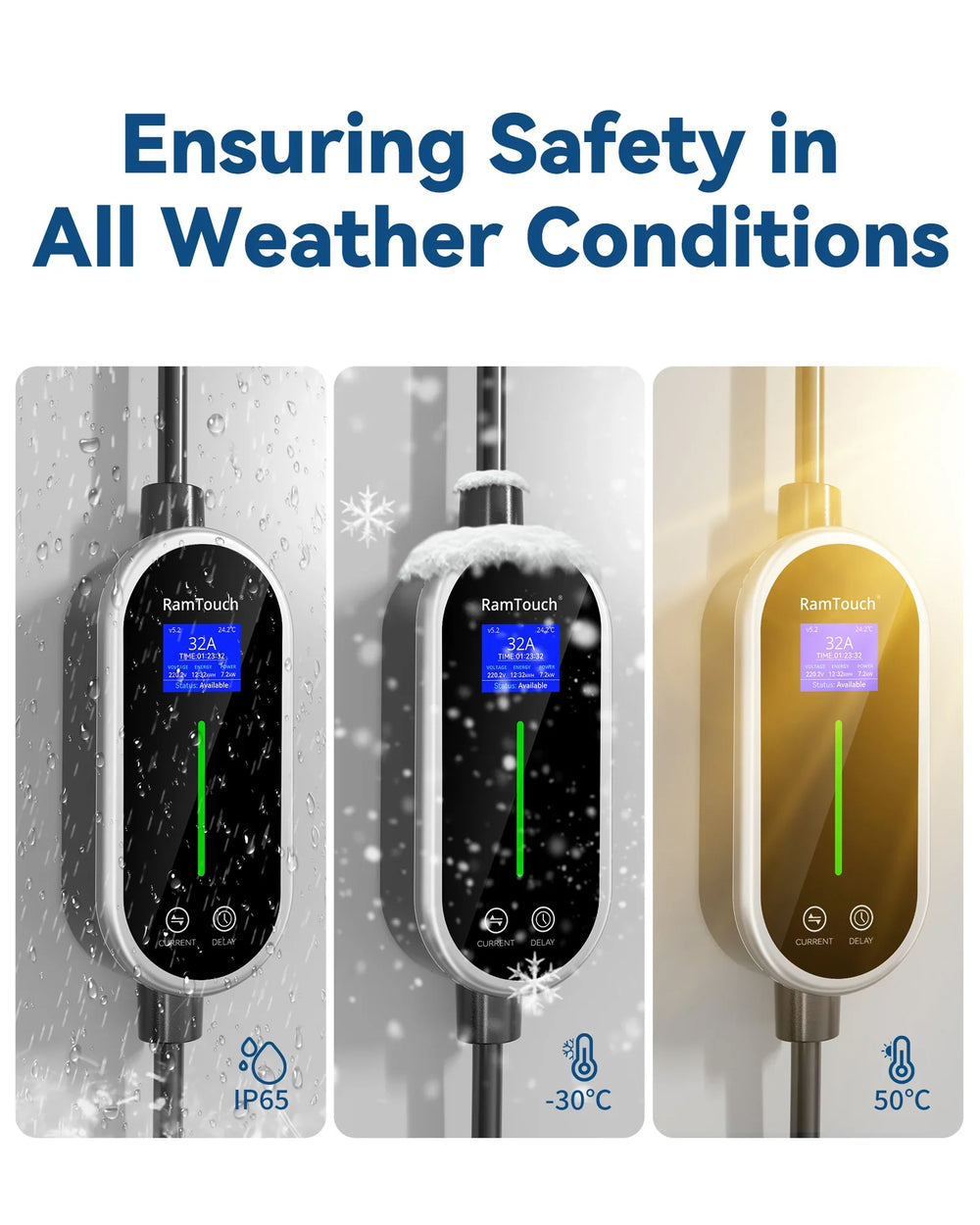

| Comprehensive Safety Assurance: Equipped with 10 advanced safety features, an IP65 waterproof and dustproof rating, and a Type A RCD, this charger offers unwavering safety assurance - allowing you to charge with confidence in all weather conditions |

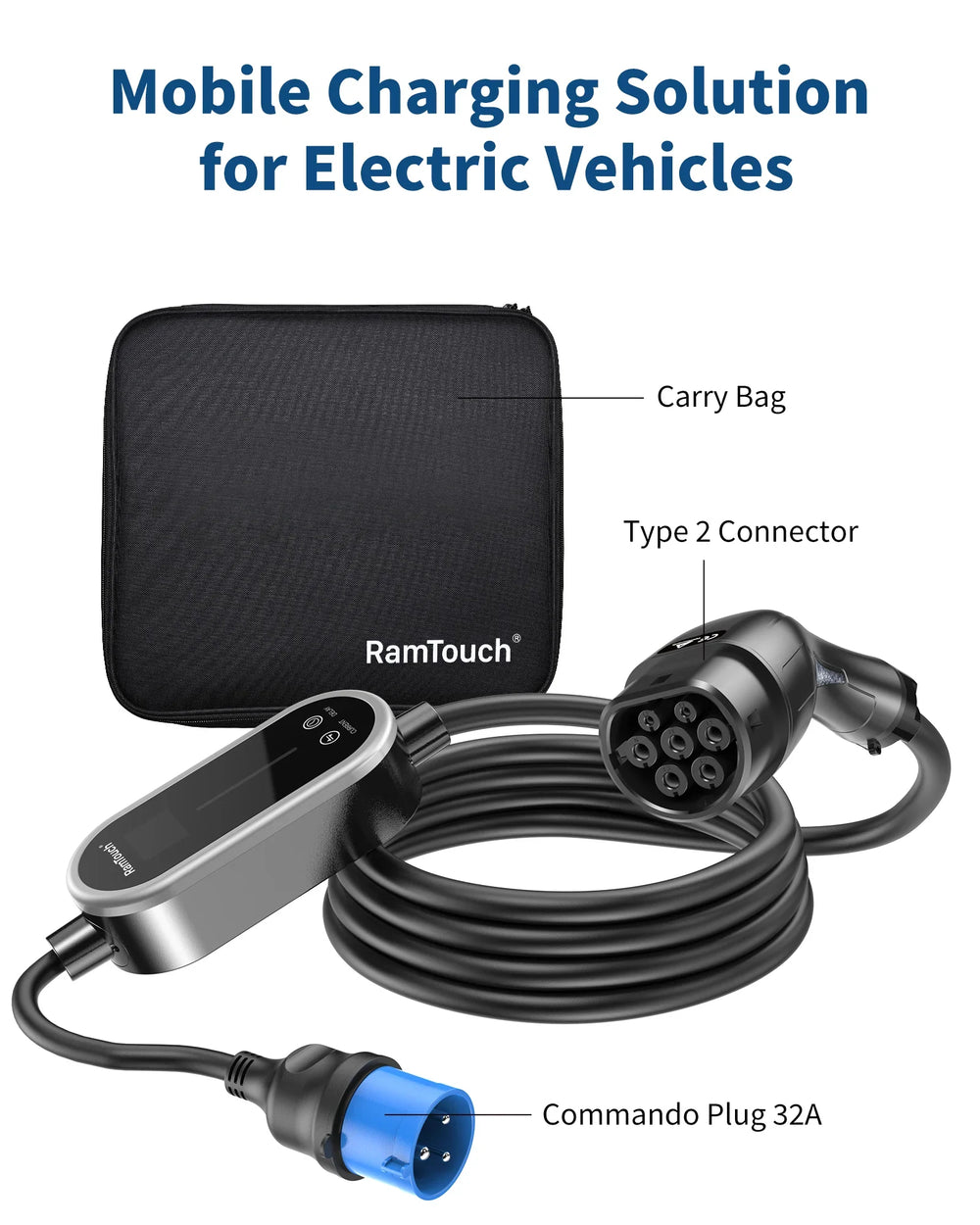

| What You Get: EV Charger (Portable, 7.4 kW, Type 2 Connector), user manual, storage bag, and friendly customer service |
| Specification | Details |
|---|---|

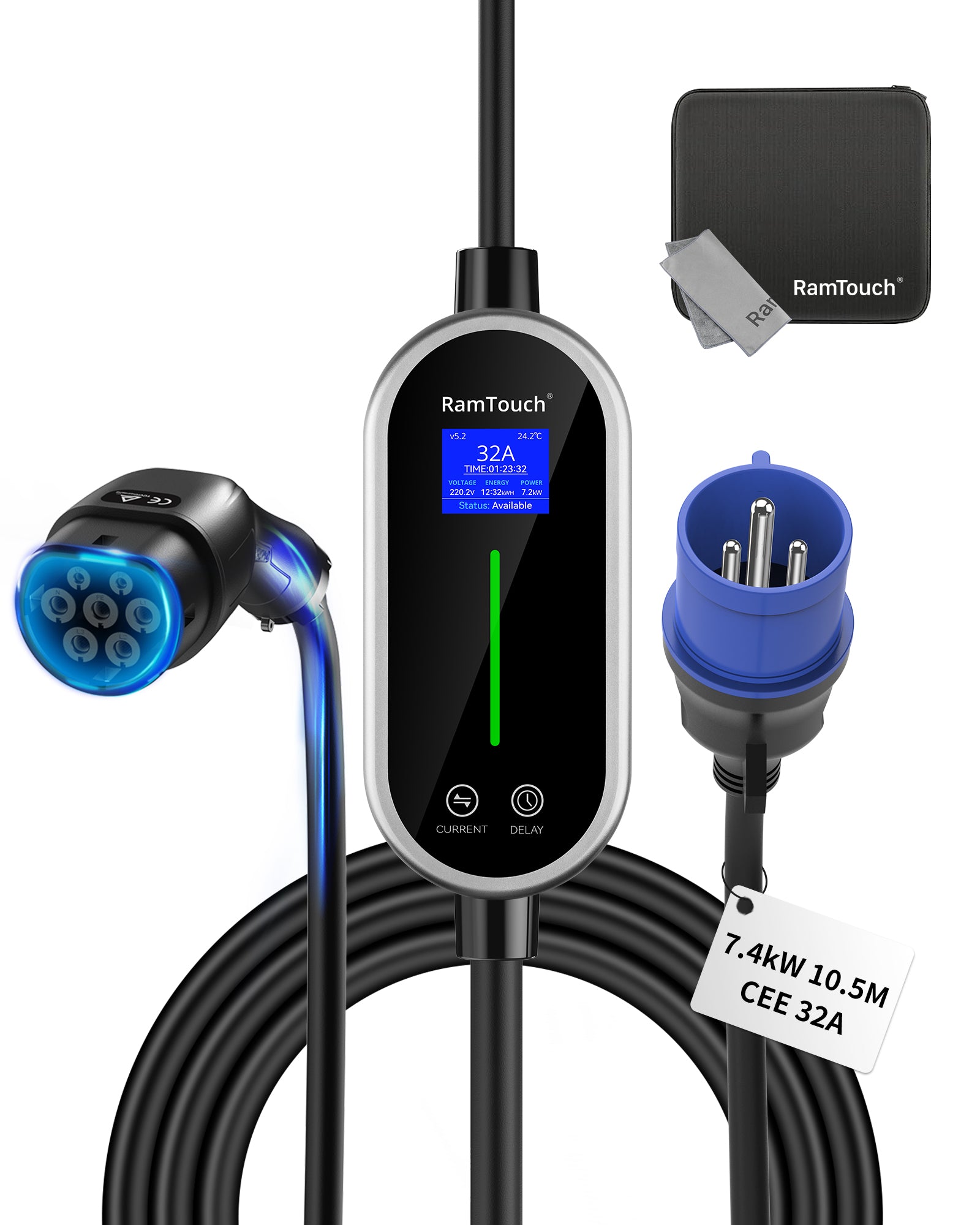

| Name | Mode 2 Electric Vehicle Charging Equipment IC-CPD (7.4 kW, Type 2, 32A CEE Commando Plug) |
| Power | 7.4 kW, Maximum of 8 kW at 250 V (10-Stage regulation) |
| Rated Voltage | 230 VAC, 1-phase |
| Power Plug | CEE Commando Industrial Plug, 250 V / 32 A, 2P+E |
| Rated Current | 8A / 10A / 13A / 16A / 32A |
| IP Rating | Type 2 Connector: IP55 | Control Box: IP65 | CEE Plug: IP44 |

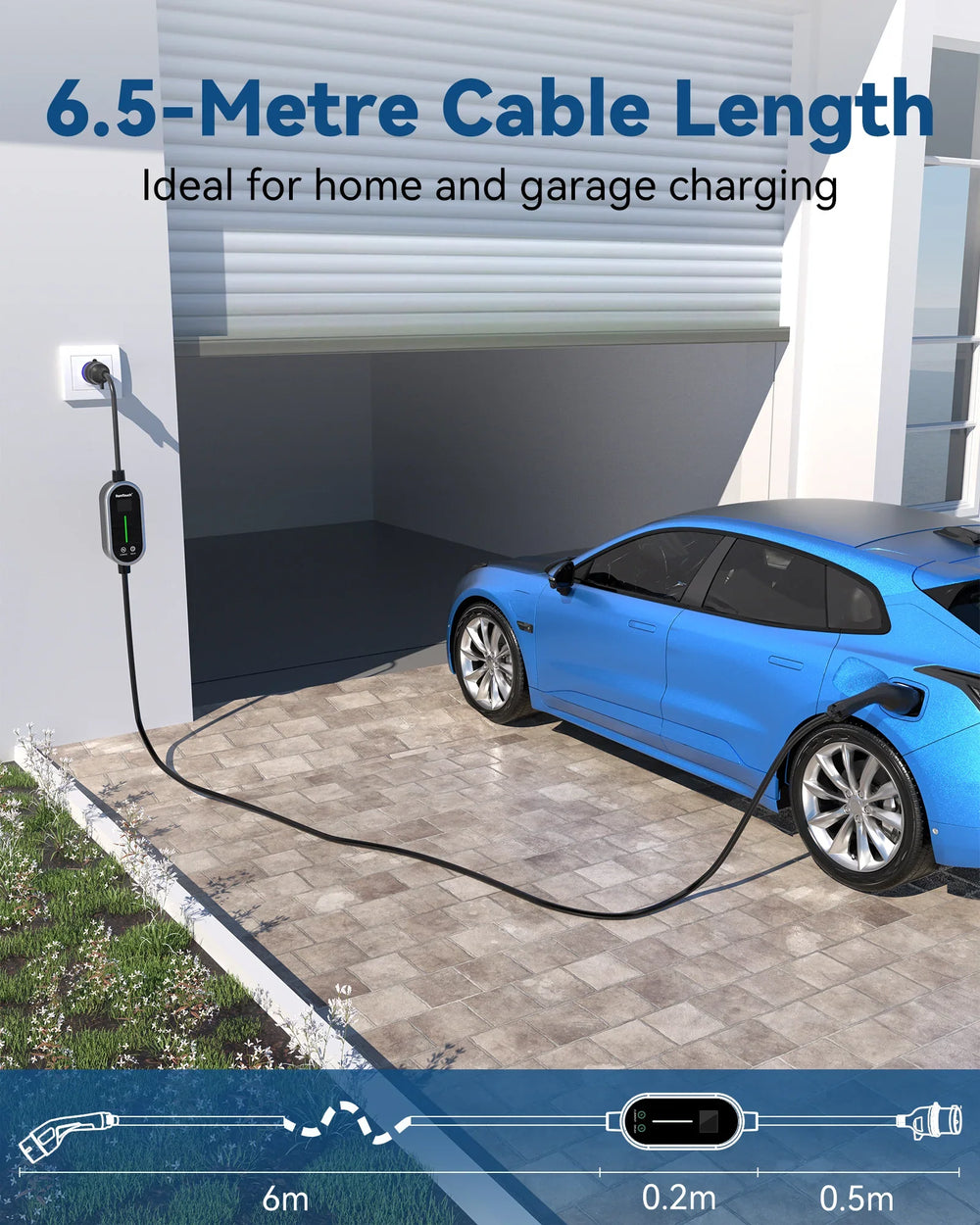

| Cable Length | 6.5 m (Power Cable 0.6 m + ICCB Box 0.2 m + Output Cable 5.7 m) |
| Connector Material | Type 2 Connector, PC Housing |
| Dimensions (Control Box) | 199 mm (L) × 90 mm (W) × 45 mm (H), PC Housing |
| Cable Outer Sheath | H07BZ5-F TPU Jacket, 3G 6.0 mm² |
| EV Charging Mode | Mode 2 |
| Weight | 3.0 kg (net); 3.74 kg (gross) |
| Working Temperature | −30 °C to +50 °C |

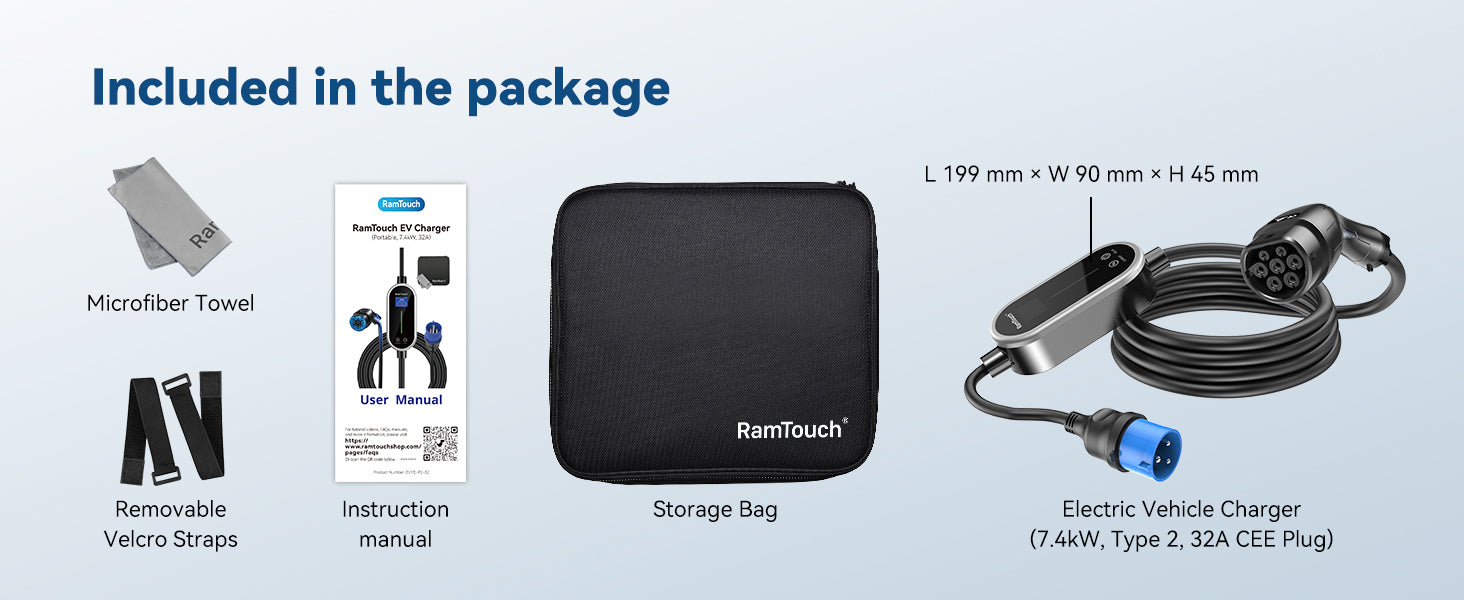

| Package Includes | EV Charger (7.4 kW, Type 2, 6.5 m) ×1, Carry Bag ×1, User Manual ×1, Removable Velcro Straps ×2, Microfiber Towel ×1 |
| Safety | Ensure outlet is properly grounded. Secure all connections (IC-CPD to outlet, IC-CPD to vehicle) before charging. |
| Smart Features | Plug & Play, Current Regulation/Adjustment, Delayed Charging, Proactive Safety Protection, Smart Shutdown & Recovery |
2 Year Warranty
xRamTouch Warranty Information Summary
RamTouch products (including EV Chargers, EV Cables, and related accessories) are covered by a Two (2) Year Limited Warranty from the date of original purchase. This warranty is provided by iGreen Power Technology Co., Limited.
What the Warranty Covers:
This warranty covers defects in workmanship and materials that occur during normal intended use within the applicable warranty period. We will, at our discretion, repair or replace the defective product or part.
Conditions for Warranty Claim Approval:
- You must have purchased the product directly from RamTouch or an authorized dealer.
- You must provide proof of the date of purchase (e.g., sales receipt or order confirmation).
- You must provide a detailed description of the suspected fault or issue.
- You must provide clear photos and/or videos demonstrating the issue if requested.
- You must have used the product as intended and according to the instructions.
What the Warranty Does Not Cover:
- Defects caused by third-party modifications.
- Improper installation.
- Attempted repairs by unauthorized persons.
- Misuse, neglect, or accidents.
- Cosmetic damage (scratches, dents).
- Normal wear and tear or material breakdown over time.
How to Submit a Warranty Claim:
- Contact Us: Email our support team at after-sales@ramtouchshop.com or use the contact form on our website: https://www.ramtouchshop.com/pages/contact-us.
- Provide Details: Include your order number (or proof of purchase), a detailed description of the issue, and attach clear photos and/or videos showing the fault.
- Review: Our support team will review your claim and respond within 2–3 business days.
- Resolution: We will guide you through troubleshooting or arrange for repair or replacement if the claim is approved.
Important Notes:
- This warranty is in addition to your statutory consumer rights.
- We may have limited liability for commercial use without prior agreement.
- The warranty is valid only in the country where the product was originally sold.
This warranty process does not affect your statutory legal rights regarding faulty or misdescribed products.
The use of your personal information for warranty claims is governed by our Privacy Policy.
Shipping & Return
xShipping Policy
Shipping Origin
Our products are dispatched from our warehouses located in either the European Union (EU) or the United Kingdom (UK), depending on the destination country and the availability of the item in stock.
Free Shipping
We are pleased to offer complimentary shipping to the following countries:
| Belgium | France | Poland | The United Kingdom |
| Italy | Germany | Spain | The Netherlands |
| Austria | Portugal | Luxembourg | Denmark |
| Sweden | Finland | Ireland | Bulgaria |
| Croatia | Cyprus | The Czech Republic | Estonia |
| Greece | Hungary | Slovenia | Slovakia |
| Romania | Lithuania | Malta |
Please note: Our logistics system currently does not extend to other EU countries.
Product Availability
At this time, our products are exclusively available for sale within EU and UK countries.
Order Processing
We aim to dispatch all orders within 1 working day of purchase. During peak periods, processing may extend to 3 working days. However, we always strive to dispatch your product as quickly as possible. Once your order has been dispatched, you will receive an email notification with tracking information (shipped via AMZ, DHL, GLS, UPS, or other carriers).
Order Amendments
Please note: Once your order has been submitted, we are unable to amend the shipping address or cancel the order.
Shipping Delivery Times
Your order will require 1–2 business days for processing. The following delivery options are available:
| Method | Cost | Countries | Delivery Time |
|---|---|---|---|
| Standard Delivery | Free | Belgium, France, Poland, the United Kingdom, Italy, Germany, Spain, the Netherlands, Austria, Portugal | 3–5 Working Days |
| Standard Delivery | Free | Luxembourg, Denmark, Sweden, Finland, Ireland, Bulgaria, Croatia, Cyprus, the Czech Republic, Estonia, Greece, Hungary, Slovenia, Slovakia, Romania, Lithuania, Malta | 5–10 Working Days |
Consumer Rights
As a consumer, you have the right to cancel your order within 14 days of receiving your goods, in accordance with UK & EU consumer protection regulations. For more information about returns and refunds, please refer to our Return and Refund Policy.
Damaged Shipments
Upon arrival, please inspect your order for any damage, missing, or incorrect items. Report any damages immediately to avoid additional freight charges. We are not liable for such issues after 30 business days or for lost or stolen items. Claims for missing or stolen packages must be filed with the carrier.
Risk of Loss
Our shipping terms are FOB shipping point, meaning you assume risk and ownership upon carrier acceptance. While we cannot take responsibility for lost or stolen packages, we will assist in filing a claim. You must contact us immediately if the entire shipment was not received within 2 full days of the carrier’s estimated delivery date. All claims should be made within thirty days of the shipping date.
Contact Information
If you have any questions regarding your order, please do not hesitate to contact us at after-sales@ramtouchshop.com.
FAQ
xQ1: Is this charger compatible with my electric vehicle?
Yes – it works with all EVs and PHEVs equipped with a Type 2 inlet (EU standard), including Tesla, VW ID.3/ID.4/ID.5, Audi e-tron, BMW i3/i4/iX, Kia EV6, Hyundai IONIQ 5, Renault ZOE, Peugeot e-208, Fiat 500e, and more.
Q2: What kind of plug does it use?

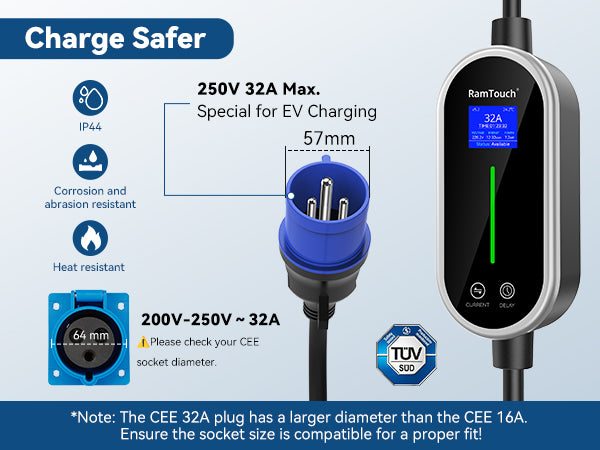

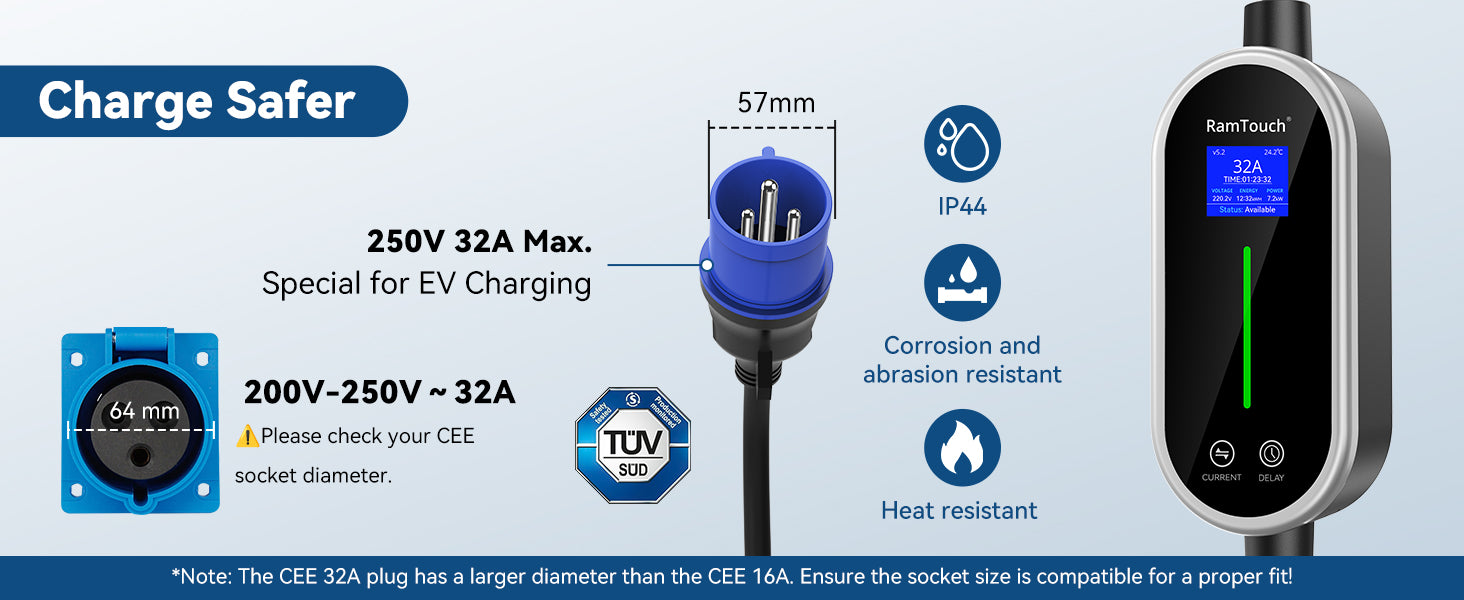

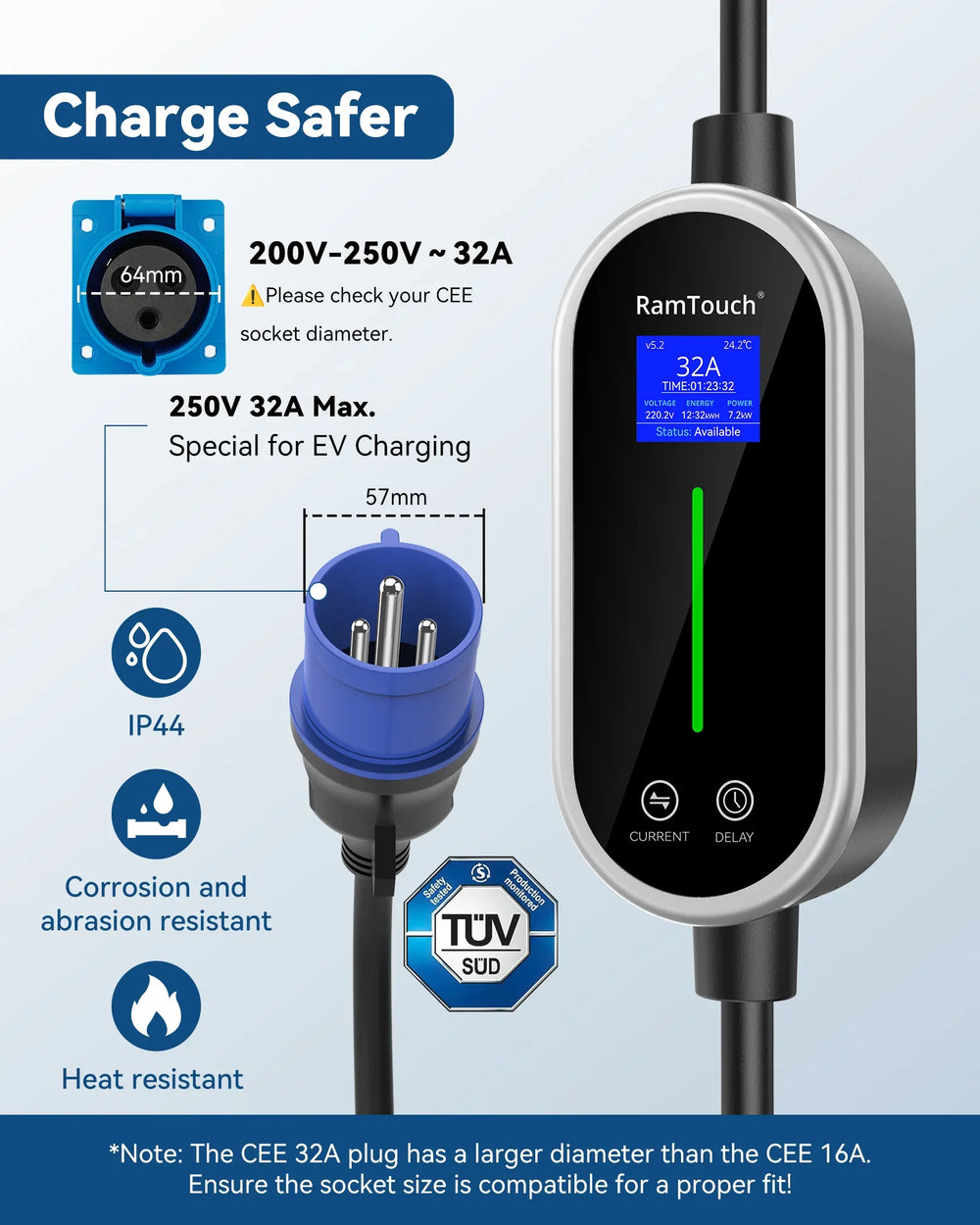

This charger uses a 32A CEE 3-Pin plug (red, 230V single-phase). It is designed for high-power EV charging. Please note: a 32A CEE plug is not compatible with a 16A CEE socket (such as camping/caravan sockets).
Q3: How fast does it charge?
Up to 7.4 kW (32A, single-phase). This provides up to 45 km of driving range per hour of charging — up to 4 times faster than a standard 8A household charger.

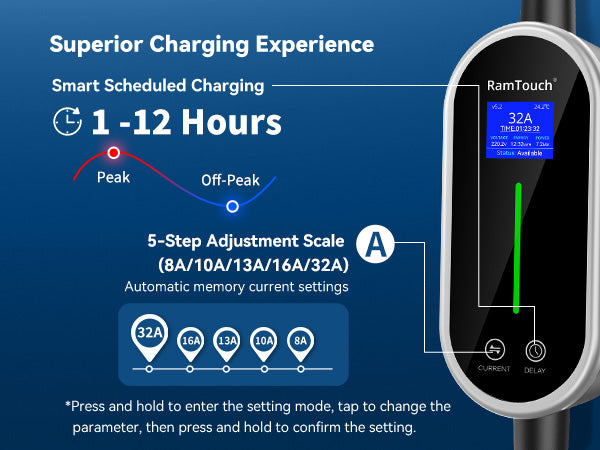

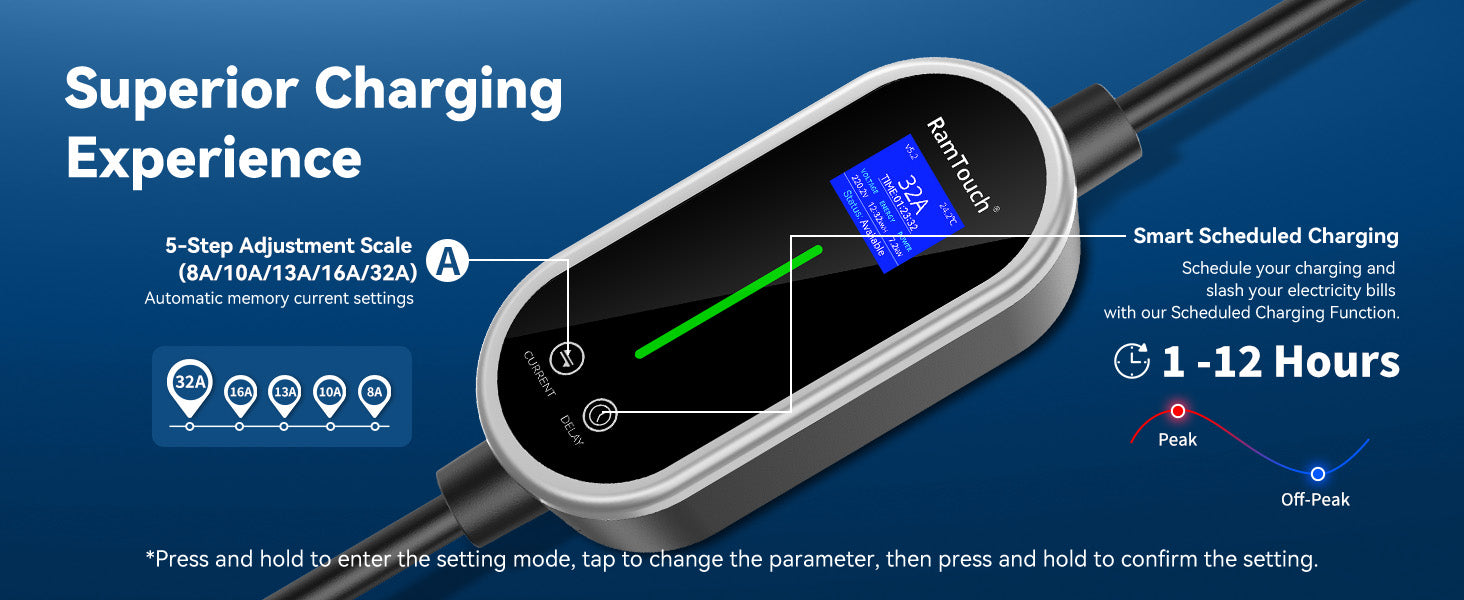

Q4: Can I adjust the charging current?
Yes – the charger supports stepwise adjustment: 8A / 10A / 13A / 16A / 32A. This allows safe use with different power supplies and helps avoid circuit overload.
Q5: Does it support delayed charging?
Yes – you can set a scheduled start from 1 to 12 hours. Ideal for charging overnight or during off-peak electricity hours to reduce costs.

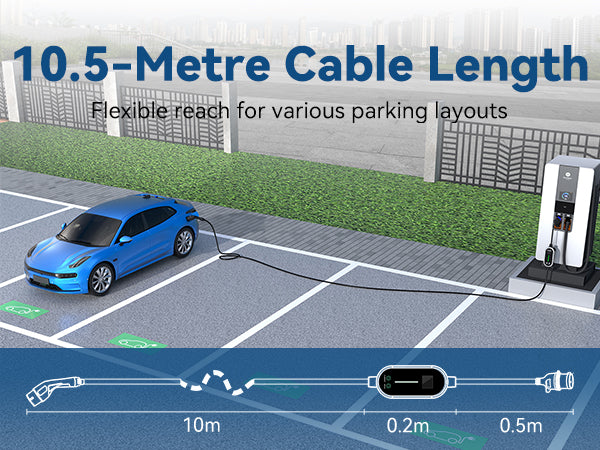

Q6: What cable lengths are available?
The charger is available with 6.5 m, 10.5 m, or 15.5 m cable lengths. This ensures flexibility depending on your parking layout.

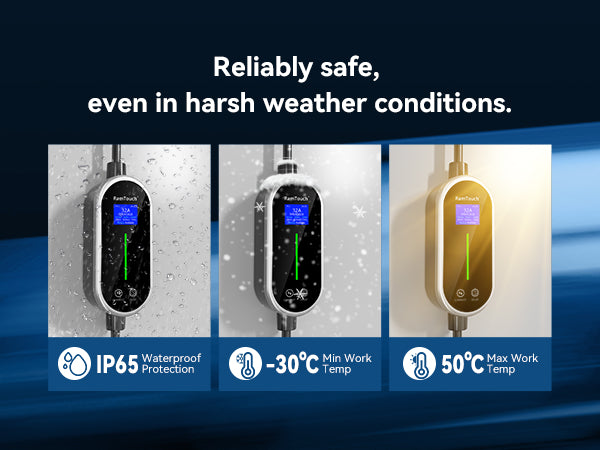

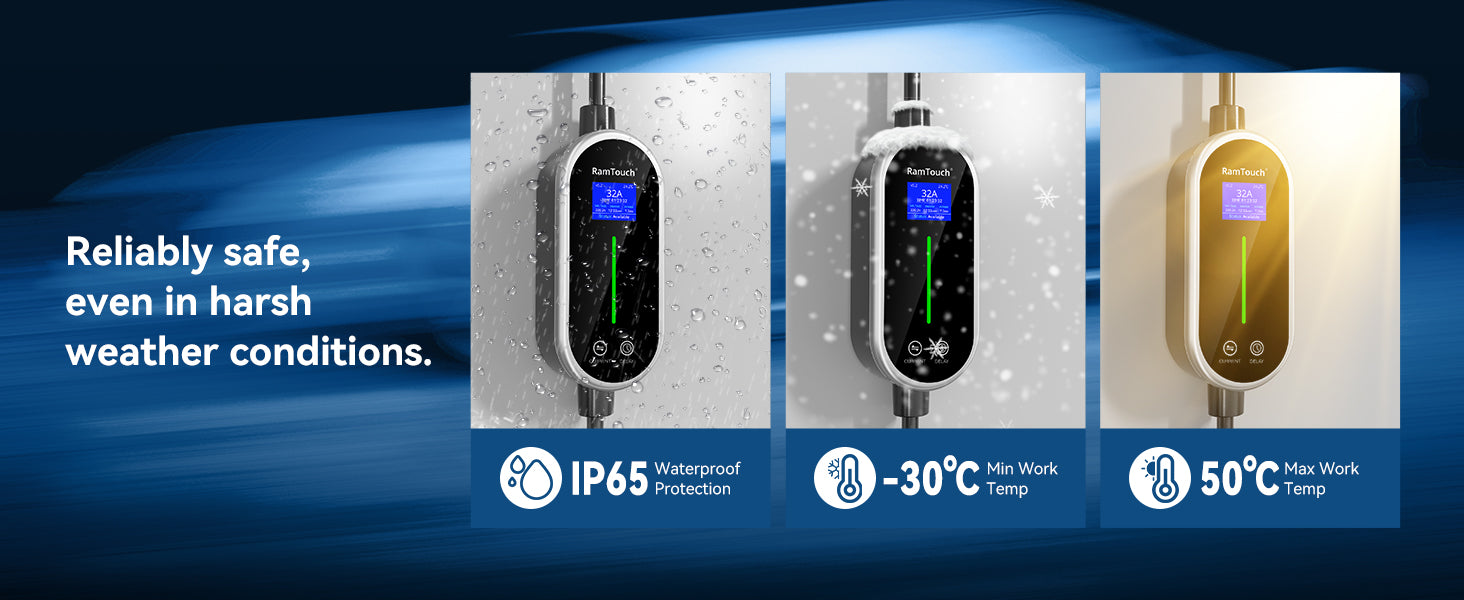

Q7: Is it safe for outdoor use?
Yes – the charger is IP65 waterproof and dustproof, with a PC housing and robust design. The CEE plug itself has IP44 protection. Suitable for use in garages, driveways, and outdoor parking spaces.
Q8: What safety features are included?

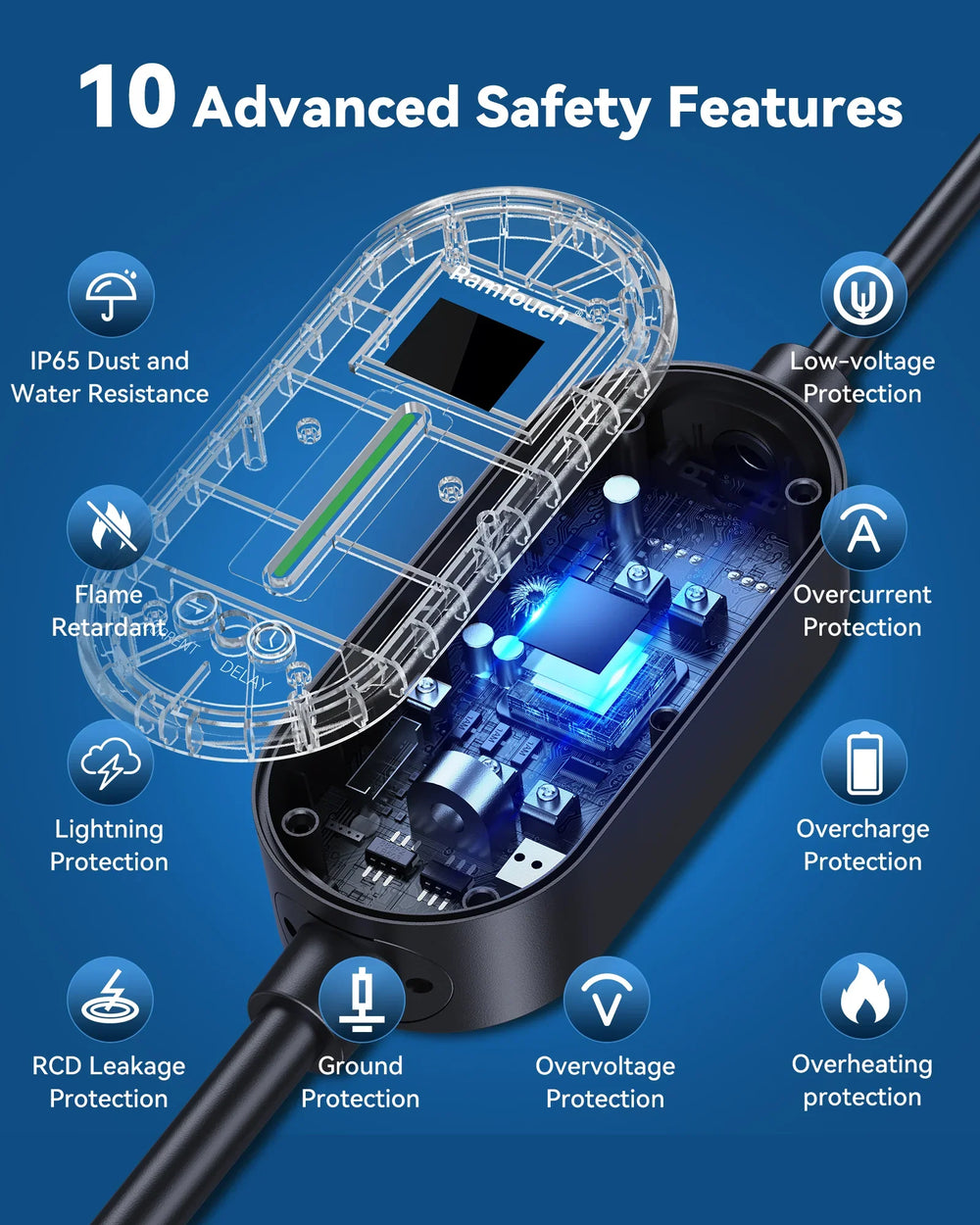

It includes RCD Type A and multiple protections: over-voltage, under-voltage, over-current, overheating, short circuit, leakage, and surge protection. All tested to EN 60309-1/2 standards for safety and reliability.

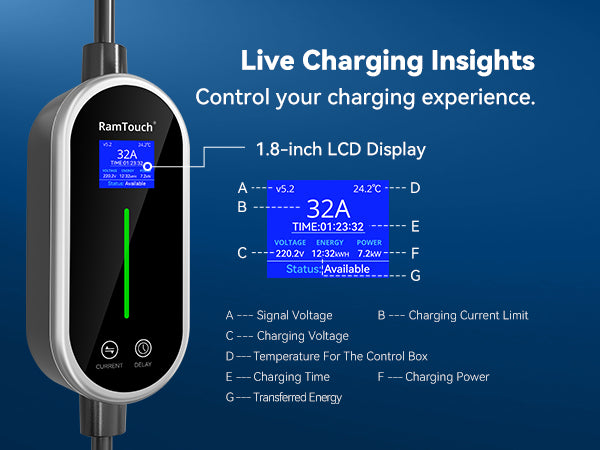

Q9: How do I monitor charging?

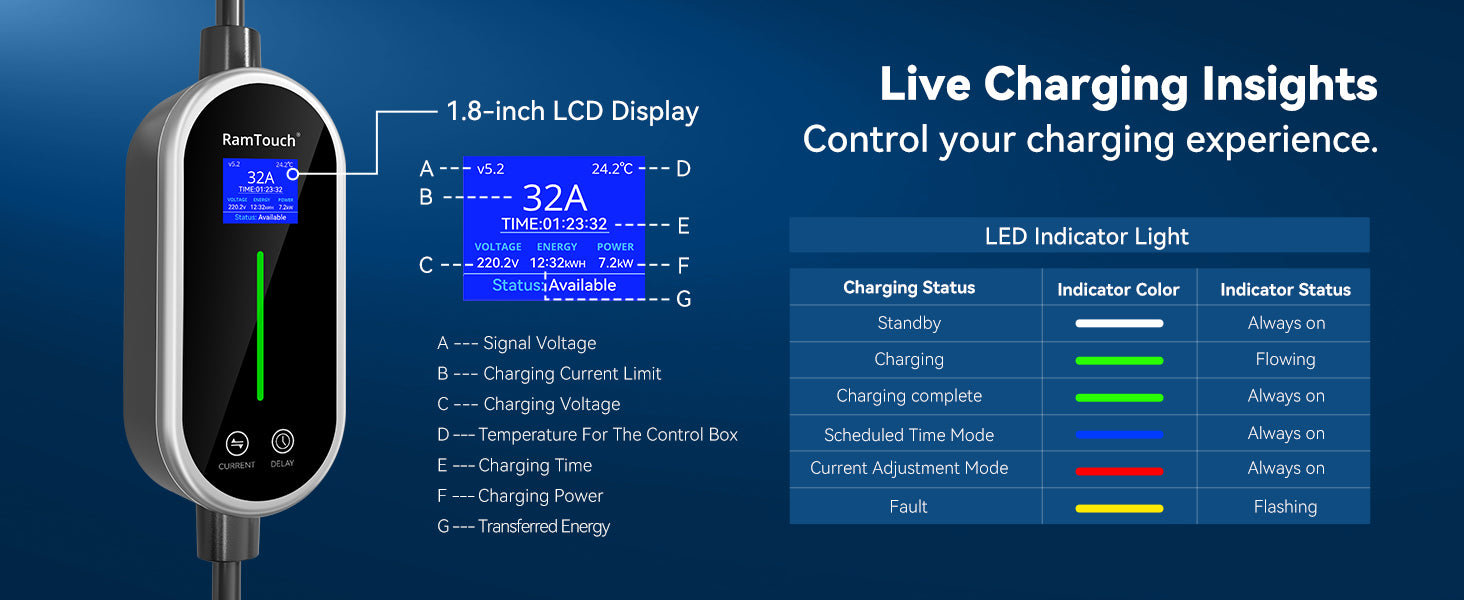

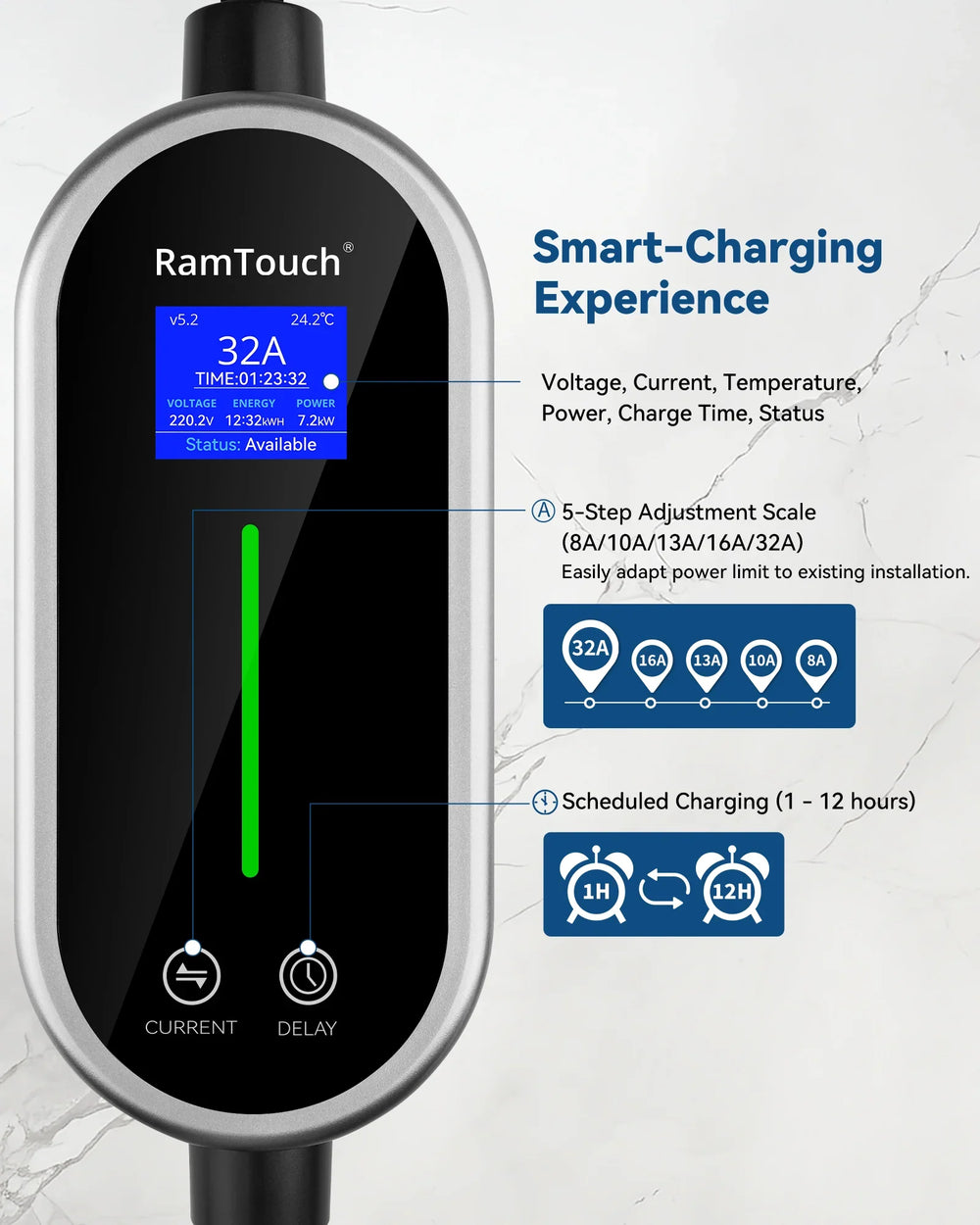

The LCD display shows key parameters: charging current, voltage, power, charging time, and error codes. This allows you to monitor charging status in real time.
Q10: Can I use this at home and while traveling?
Yes – as long as you have access to a 32A CEE socket. It’s portable, comes with a carry bag, and is ideal for both home and on-the-road charging.
Q11: What’s included in the box?
You will receive: 1× Portable EV Charger (7.4 kW, Type 2, CEE 32A plug, chosen cable length), 1× storage/carry bag, 1× user manual, removable Velcro straps, plus a 24-month warranty and friendly customer service.
Q12: Is there a warranty?
Yes – all RamTouch chargers come with a 24-month limited warranty, backed by our dedicated support team.
Still unsure? Contact us anytime.
Portable. Powerful. Reliable.
Electric Vehicle Charger | 7.4 KW | Type 2 | Blue 32A CEE Plug | Adjustable Current | Delay Start | Safe & Fast Charging for All Electric Vehicles
